TMAG5231
  • TMAG5231
  • TMAG5231
  • TMAG5231

TMAG5231

ACTIVE

Low-power, low-voltage (1.65 V to 5.5 V) Hall-effect switch

Texas Instruments TMAG5231 Product Info

1 April 2026 0

Parameters

Type

Omnipolar switch

Supply current (µA)

1.3, 2, 16

Bandwidth (kHz)

0.01, 0.02, 0.216

Supply voltage (min) (V)

1.65

Supply voltage (max) (V)

5.5

Rating

Catalog

Operating temperature range (°C)

-40 to 125

Output

Push-Pull output driver

Package

SOT-23 (DBZ)-3-6.9204 mm² 2.92 x 2.37

Features

  • Low power consumption:
    • 10-Hz versions: 1.3 µA at 3 V
    • 20-Hz versions: 2 µA at 3 V
    • 216-Hz versions: 16 µA at 3 V
  • 1.65-V to 5.5-V operating VCC range
  • Magnetic threshold option (typical BOP):
    • 1.8 mT with 0.6-mT hysteresis
    • 2.85 mT with 1.35-mT hysteresis
    • 3 mT with 0.8-mT hysteresis
    • 40 mT with 6.5-mT hysteresis
  • Omnipolar response
  • Push-pull output
  • Industry-standard package and pinout
    • SOT-23 package
    • X2SON package
  • Operating temperature range: –40°C to +125°C
  • Low power consumption:
    • 10-Hz versions: 1.3 µA at 3 V
    • 20-Hz versions: 2 µA at 3 V
    • 216-Hz versions: 16 µA at 3 V
  • 1.65-V to 5.5-V operating VCC range
  • Magnetic threshold option (typical BOP):
    • 1.8 mT with 0.6-mT hysteresis
    • 2.85 mT with 1.35-mT hysteresis
    • 3 mT with 0.8-mT hysteresis
    • 40 mT with 6.5-mT hysteresis
  • Omnipolar response
  • Push-pull output
  • Industry-standard package and pinout
    • SOT-23 package
    • X2SON package
  • Operating temperature range: –40°C to +125°C

Description

The TMAG5231 is a 2nd-generation, low-power Hall-effect switch sensor, specifically designed to optimize the total system cost for compact, battery-operated consumer and industrial applications.

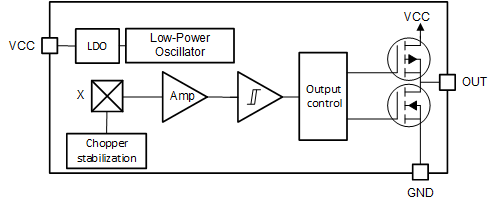

When the applied magnetic flux density exceeds the operating point (BOP) threshold, the device outputs a low voltage. The output stays low until the flux density decreases to less than the release point (BRP), and then the device outputs a high voltage. Omnipolar magnetic response allows the output to be sensitive to both north and south magnetic fields.

The TMAG5231 is able to operate at very low current consumption. To achieve 2 µA of current consumption the device is internally power cycled at a 20-Hz rate.

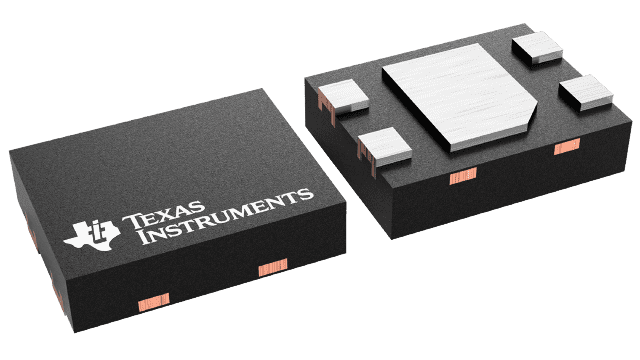

The TMAG5231 is available in the industry-standard package and pinout SOT-23 as well as X2SON.

The device operates at a VCC range of 1.65 V to 5.5 V as well as an extended temperature range of –40°C to 125°C.

The TMAG5231 is a 2nd-generation, low-power Hall-effect switch sensor, specifically designed to optimize the total system cost for compact, battery-operated consumer and industrial applications.

When the applied magnetic flux density exceeds the operating point (BOP) threshold, the device outputs a low voltage. The output stays low until the flux density decreases to less than the release point (BRP), and then the device outputs a high voltage. Omnipolar magnetic response allows the output to be sensitive to both north and south magnetic fields.

The TMAG5231 is able to operate at very low current consumption. To achieve 2 µA of current consumption the device is internally power cycled at a 20-Hz rate.

The TMAG5231 is available in the industry-standard package and pinout SOT-23 as well as X2SON.

The device operates at a VCC range of 1.65 V to 5.5 V as well as an extended temperature range of –40°C to 125°C.
