ACTIVE
Type |
Unipolar switch |
Operate point (typ) (mT) |
4, 6, 10, 15 |
Operate point (max) (mT) |
5, 7, 11, 16.1 |
Release point (min) (mT) |
1, 3, 6.8, 11.4 |
Supply current (µA) |
3500, 6000 |
Bandwidth (kHz) |
40 |
Supply voltage (min) (V) |
2.7 |
Supply voltage (max) (V) |
38 |
Rating |
Automotive |
Operating temperature range (°C) |
-40 to 150 |
Output |
Current |

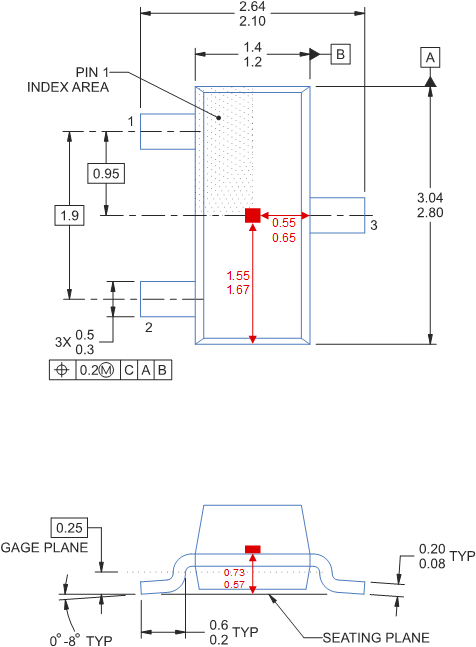

SOT-23 (DBZ)-3-6.9204 mm² 2.92 x 2.37
The TMAG5124 -Q1 device is a high-precision Hall effect sensor that offers a 2-wire interface designed for automotive designs.

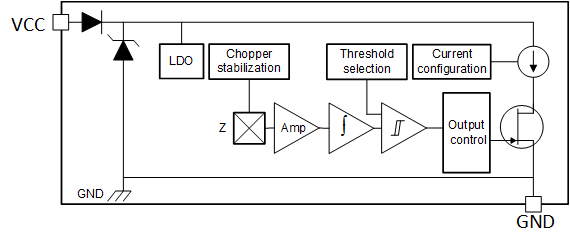

The TMAG5124 -Q1 integrates a current source that switches between two levels depending on the value of the magnetic field applied to the part. While the high value is fixed, the low value can be selected from two ranges. This type of interface enables robust communication between sensor and controller, allow long distance transmissions, helps detect disconnections, and limits the number of wires to two.
The device is available in a 3-pin SOT-23 package. While 3 pins are available on the package, the device only requires the VCC and GND pin to operate. The current can be measured from either of those 2 pins, creating either a high-side or low-side configuration.
Different product variants enable selection of different levels of magnetic sensitivity to match application specific requirements.
The wide operating voltage range and reverse polarity protection of the TMAG5124 -Q1 is designed for a variety of automotive applications.
