LDC3114
  • LDC3114
  • LDC3114
  • LDC3114

LDC3114

ACTIVE

4-channel inductance-to-digital converter for low-power proximity and touch-button sensing

Texas Instruments LDC3114 Product Info

1 April 2026 1

Parameters

Applications

Encoders/event counters, Inductive touch buttons, Metal proximity detection

Number of input channels

4

Rating

Catalog

Vs (max) (V)

1.89

Vs (min) (V)

1.71

Operating temperature range (°C)

-40 to 125

Package

TSSOP (PW)-16-32 mm² 5 x 6.4

Features

  • Multiple modes of operation:
    • Raw data mode: access pre-processed inductance measurement data to enable advanced algorithms on MCU for linear sensing
    • Button mode: button press detection with baseline tracking and advanced on-chip post processing
    • Force level measurement of touch buttons
  • Pin and register compatible to LDC2114
  • Robust EMI performance allows for CISPR 22 and CISPR 24 compliance
  • Four independent channel operation
  • Configurable scan rates:
    • 0.625 SPS to 160 SPS
    • Continuous scanning option
  • Advanced button press detection algorithms:
    • Adjustable force threshold per button
    • Environmental shift compensation
    • Simultaneous button press detection
  • Low current consumption:
    • One button: 6 µA at 0.625 SPS
    • Two buttons: 72 µA at 20 SPS
  • Temperature range
    • TSSOP (16) : –40°C to +125°C
  • Interface:
    • 1.8-V and 3.3-V compliant I2C and INTB
    • 1.8-V logic output per channel for buttons
  • Multiple modes of operation:
    • Raw data mode: access pre-processed inductance measurement data to enable advanced algorithms on MCU for linear sensing
    • Button mode: button press detection with baseline tracking and advanced on-chip post processing
    • Force level measurement of touch buttons
  • Pin and register compatible to LDC2114
  • Robust EMI performance allows for CISPR 22 and CISPR 24 compliance
  • Four independent channel operation
  • Configurable scan rates:
    • 0.625 SPS to 160 SPS
    • Continuous scanning option
  • Advanced button press detection algorithms:
    • Adjustable force threshold per button
    • Environmental shift compensation
    • Simultaneous button press detection
  • Low current consumption:
    • One button: 6 µA at 0.625 SPS
    • Two buttons: 72 µA at 20 SPS
  • Temperature range
    • TSSOP (16) : –40°C to +125°C
  • Interface:
    • 1.8-V and 3.3-V compliant I2C and INTB
    • 1.8-V logic output per channel for buttons

Description

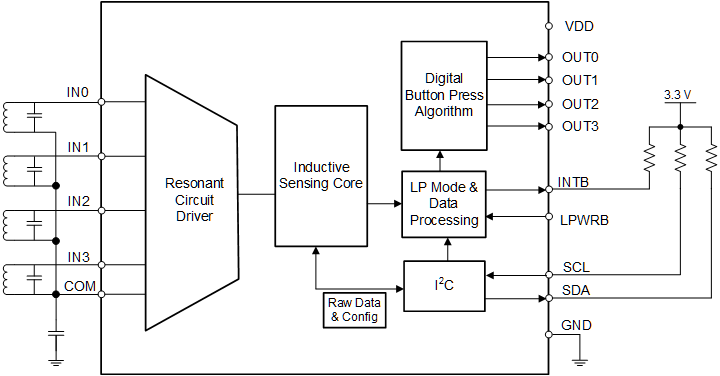

The LDC3114 is an inductive sensing device that enables touch button design for human machine interface (HMI) on a wide variety of materials by measuring small deflections of conductive targets using a coil that can be implemented on a small printed circuit board (PCB) located behind the panel. This technology can be used for precise linear position sensing of metal targets for automotive, consumer and industrial applications by allowing access to the raw data representing the inductance value. Inductive sensing solution is insensitive to humidity or non-conductive contaminants such as oil and dirt.

The button mode of LDC3114 is able to automatically correct for any deformation in the conductive targets. The LDC3114 offers well-matched channels, which allow for differential and ratiometric measurements which enable compensation of environmental and aging conditions such as temperature and mechanical drift. The LDC3114 includes an ultra-low power mode intended for power on/off buttons or position sensors in battery powered applications.

The LDC3114 is easily configured through an I2C interface. The LDC3114 is available in a 16-pin TSSOP package.

The LDC3114 is an inductive sensing device that enables touch button design for human machine interface (HMI) on a wide variety of materials by measuring small deflections of conductive targets using a coil that can be implemented on a small printed circuit board (PCB) located behind the panel. This technology can be used for precise linear position sensing of metal targets for automotive, consumer and industrial applications by allowing access to the raw data representing the inductance value. Inductive sensing solution is insensitive to humidity or non-conductive contaminants such as oil and dirt.

The button mode of LDC3114 is able to automatically correct for any deformation in the conductive targets. The LDC3114 offers well-matched channels, which allow for differential and ratiometric measurements which enable compensation of environmental and aging conditions such as temperature and mechanical drift. The LDC3114 includes an ultra-low power mode intended for power on/off buttons or position sensors in battery powered applications.

The LDC3114 is easily configured through an I2C interface. The LDC3114 is available in a 16-pin TSSOP package.
