ACTIVE
Technology family |
AHC |
Supply voltage (min) (V) |
2 |
Supply voltage (max) (V) |
5.5 |
Number of channels |
1 |
Inputs per channel |
2 |
IOL (max) (mA) |
8 |
IOH (max) (mA) |
-8 |
Input type |
Standard CMOS |
Output type |
Push-Pull |
Features |
Over-voltage tolerant inputs, Very high speed (tpd 5-10ns) |
Data rate (max) (Mbps) |
110 |
Rating |
Automotive |
Operating temperature range (°C) |
-40 to 125 |

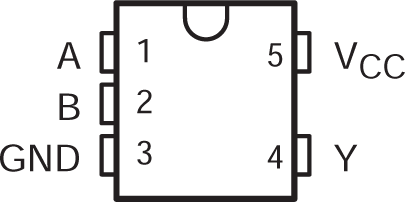

SOT-23 (DBV)-5-8.12 mm² 2.9 x 2.8
AEC-Q100 qualified for automotive applications:
Device temperature grade 1: -40°C to +125°C
Device HBM ESD classification level 2
Device CDM ESD classification level C4B
The SN74AHC1G32-Q1 is a single 2-input positive-OR gate. The device performs the Boolean functionY = A + B in positive logic.
