DS90LV028AQ-Q1
  • DS90LV028AQ-Q1
  • DS90LV028AQ-Q1
  • DS90LV028AQ-Q1
  • DS90LV028AQ-Q1

DS90LV028AQ-Q1

ACTIVE

Automotive LVDS dual differential line receiver

Texas Instruments DS90LV028AQ-Q1 Product Info

1 April 2026 3

Parameters

Function

Receiver

Protocols

LVDS

Number of transmitters

0

Number of receivers

2

Supply voltage (V)

3.3

Signaling rate (Mbps)

400

Input signal

LVDS

Output signal

LVTTL, TTL

Rating

Automotive

Operating temperature range (°C)

-40 to 125

Package

SOIC (D)-8-29.4 mm² 4.9 x 6

Features

  • AECQ-100 Qualified for Automotive Applications
    • Temperature Grade 1: -40°C to +125°C TA
  • >400 Mbps (200 MHz) Switching Rates
  • 50 ps Differential Skew (Typical)
  • 0.1 ns Channel-to-Channel Skew (Typical)
  • 2.5 ns Maximum Propagation Delay
  • 3.3V Power Supply Design
  • Flow-Through Pinout
  • Power Down High Impedance on LVDS Inputs
  • Low Power design (18 mW at 3.3 V static)
  • LVDS Inputs Accept LVDS/CML/LVPECL Signals
  • Conforms to ANSI/TIA/EIA-644 Standard
  • Available in SOIC Package
  • AECQ-100 Qualified for Automotive Applications
    • Temperature Grade 1: -40°C to +125°C TA
  • >400 Mbps (200 MHz) Switching Rates
  • 50 ps Differential Skew (Typical)
  • 0.1 ns Channel-to-Channel Skew (Typical)
  • 2.5 ns Maximum Propagation Delay
  • 3.3V Power Supply Design
  • Flow-Through Pinout
  • Power Down High Impedance on LVDS Inputs
  • Low Power design (18 mW at 3.3 V static)
  • LVDS Inputs Accept LVDS/CML/LVPECL Signals
  • Conforms to ANSI/TIA/EIA-644 Standard
  • Available in SOIC Package

Description

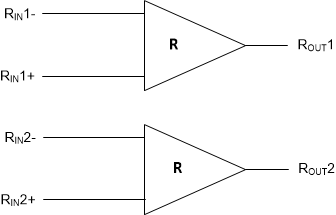

The DS90LV028AQ is a dual CMOS differential line receiver designed for applications requiring ultra low power dissipation, low noise and high data rates. The device is designed to support data rates in excess of 400 Mbps (200 MHz) utilizing Low Voltage Differential Signaling (LVDS) technology.

The DS90LV028AQ accepts low voltage (350 mV typical) differential input signals and translates them to 3 V CMOS output levels. The DS90LV028AQ has a flow-through design for easy PCB layout.

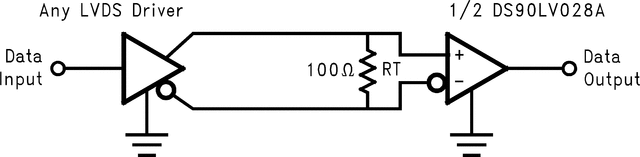

The DS90LV028AQ and companion LVDS line driver DS90LV027AQ provide a new alternative to high power PECL/ECL devices for high speed point-to-point interface applications.
