ACTIVE
Configuration |
Serial-in, Parallel-out |
Bits (#) |
8 |
Technology family |
AHCT |
Supply voltage (min) (V) |
4.5 |
Supply voltage (max) (V) |
5.5 |
Input type |
TTL-Compatible CMOS |
Output type |
3-State |
Clock frequency (MHz) |
115 |
IOL (max) (mA) |
8 |
IOH (max) (mA) |
-8 |
Supply current (max) (µA) |
40 |
Features |
Balanced outputs, Output register, Over-voltage tolerant inputs, Very high speed (tpd 5-10ns) |
Operating temperature range (°C) |
-40 to 125 |
Rating |
Catalog |
PDIP (N)-16-181.42 mm² 19.3 x 9.4

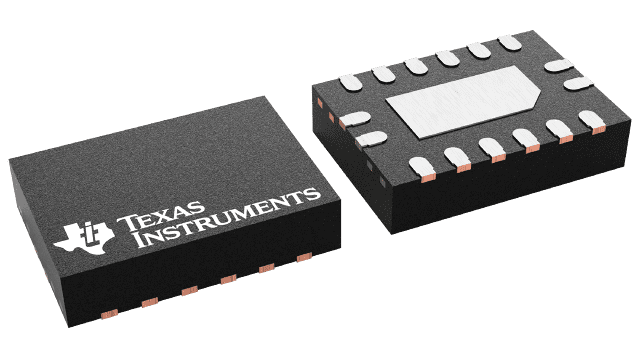

The SNx4AHCT595 devices contain an 8-bit serial-in, parallel-out shift register that feeds an 8-bit D-type storage register. Both the shift register clock (SRCLK) and storage register clock (RCLK) are positive-edge triggered.
