DLP471TP
  • DLP471TP

DLP471TP

ACTIVE

0.47-inch 4K UHD DLP® digital micromirror device (DMD)

Texas Instruments DLP471TP Product Info

1 April 2026 2

Parameters

Display resolution (max)

4K UHD (3840x2160)

System brightness (max) (lm)

1800

Input frame rate (max) (Hz)

60

Array diagonal (in)

0.47

Micromirror array size

1920x1080

Micromirror pitch (mm)

0.0054

Chipset family

DLP471TP, DLPA3005, DLPC6540

Rating

Catalog

Operating temperature range (°C)

0 to 70

Package

DLP-S317 (FQQ)-270-433.485 mm² 25.65 x 16.9

Features

  • 0.47-Inch diagonal micromirror array
    • 4K UHD (3840 × 2160) display resolution
    • 5.4-µm micromirror pitch
    • ±17° micromirror tilt (relative to flat surface)
    • Bottom illumination
  • High-speed serial interface (HSSI) input data bus
  • Supports 4K UHD at 60 Hz
  • Supports 1080p up to 240 Hz
  • LED operation supported by DLPC6540 display controller, DLPA3005 power management IC (PMIC) and LED driver
  • 0.47-Inch diagonal micromirror array
    • 4K UHD (3840 × 2160) display resolution
    • 5.4-µm micromirror pitch
    • ±17° micromirror tilt (relative to flat surface)
    • Bottom illumination
  • High-speed serial interface (HSSI) input data bus
  • Supports 4K UHD at 60 Hz
  • Supports 1080p up to 240 Hz
  • LED operation supported by DLPC6540 display controller, DLPA3005 power management IC (PMIC) and LED driver

Description

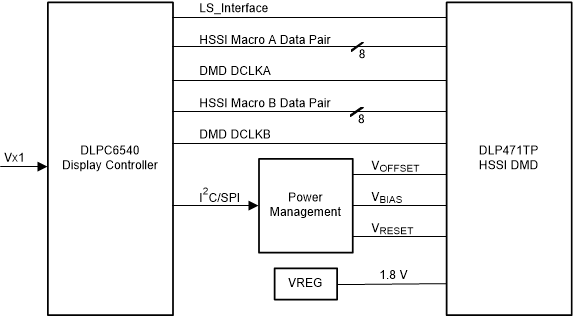

The DLP471TP digital micromirror device (DMD) is a digitally controlled micro-electro-mechanical system (MEMS) spatial light modulator (SLM) that enables bright 4K UHD display systems. The TI DLP products 0.47” 4K UHD chipset is composed of the DMD, DLPC6540 display controller, and DLPA3005 PMIC and LED driver. The compact physical size of the chipset provides a complete system solution that enables small form factor 4K UHD displays.
