DLP3020-Q1
  • DLP3020-Q1
  • DLP3020-Q1

DLP3020-Q1

ACTIVE

Automotive 0.3-inch DLP® digital micromirror device (DMD) in small S247 package

Texas Instruments DLP3020-Q1 Product Info

1 April 2026 1

Parameters

Array diagonal (in)

0.3

Display resolution (max)

864 x 480

Chipset family

DLP3020-Q1

Rating

Automotive

Operating temperature range (°C)

-40 to 105

Package

DLP-S247 (FQR)-54-143.64 mm² 16.8 x 8.55

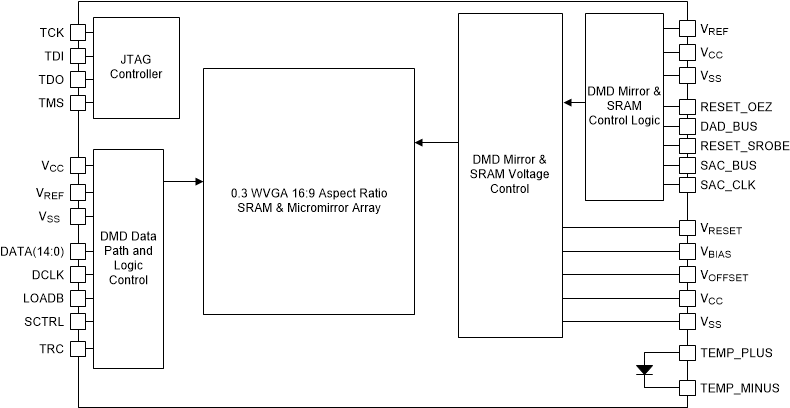

Features

  • Automotive qualified
  • 0.3-inch diagonal micromirror array
    • 7.6-µm micromirror pitch
    • ±12° micromirror tilt angle (relative to flat state)
    • Side illumination for optimized efficiency
  • WVGA (864 × 480) resolution
  • Polarization independent spatial light modulator
    • Compatible with LED or laser light sources
    • Image viewable with polarized glasses
  • Low-power consumption: 105-mW (typical)
  • Operating temperature range: –40°C to 105°C
  • Hermetic package with 7.0°C/W thermal efficiency
  • JTAG boundary scan to allow in-system validation
  • Compatible with the DLPC120-Q1 automotive DMD controller
  • 78-MHz DDR DMD interface
  • Same micromirror array as DLP3030-Q1 with a reduced package size
  • Automotive qualified
  • 0.3-inch diagonal micromirror array
    • 7.6-µm micromirror pitch
    • ±12° micromirror tilt angle (relative to flat state)
    • Side illumination for optimized efficiency
  • WVGA (864 × 480) resolution
  • Polarization independent spatial light modulator
    • Compatible with LED or laser light sources
    • Image viewable with polarized glasses
  • Low-power consumption: 105-mW (typical)
  • Operating temperature range: –40°C to 105°C
  • Hermetic package with 7.0°C/W thermal efficiency
  • JTAG boundary scan to allow in-system validation
  • Compatible with the DLPC120-Q1 automotive DMD controller
  • 78-MHz DDR DMD interface
  • Same micromirror array as DLP3030-Q1 with a reduced package size

Description

The DLP3020-Q1 Automotive DMD is primarily targeted for automotive head-up display (HUD) applications with large field of view or augmented reality capability requiring long focal distances. This chipset can be coupled with LEDs or lasers to create deep saturated colors with over 125% NTSC color gamut with support for 24-bit RGB video input. In addition, the chipset enables high brightness (15,000-cd/m2 typical) HUD systems with wide dynamic range, and fast switching speeds that do not vary with temperature. As used in the TI reference design, very high dynamic range over 5000:1 can be achieved to meet the operating range of an automotive HUD system for bright daylight and dark night time driving conditions. This device has the same micromirror array as DLP3030-Q1 with a smaller package, allowing overall volume reduction on optical system design.

The DLP3020-Q1 Automotive DMD is primarily targeted for automotive head-up display (HUD) applications with large field of view or augmented reality capability requiring long focal distances. This chipset can be coupled with LEDs or lasers to create deep saturated colors with over 125% NTSC color gamut with support for 24-bit RGB video input. In addition, the chipset enables high brightness (15,000-cd/m2 typical) HUD systems with wide dynamic range, and fast switching speeds that do not vary with temperature. As used in the TI reference design, very high dynamic range over 5000:1 can be achieved to meet the operating range of an automotive HUD system for bright daylight and dark night time driving conditions. This device has the same micromirror array as DLP3030-Q1 with a smaller package, allowing overall volume reduction on optical system design.
