ACTIVE
Technology family |
FCT |
Supply voltage (min) (V) |
4.5, 4.75 |
Supply voltage (max) (V) |
5.25, 5.5 |
Number of channels |
8 |
IOL (max) (mA) |
64 |
Supply current (max) (µA) |
200 |
IOH (max) (mA) |
-32 |
Input type |
TTL-Compatible CMOS |
Output type |
3-State |
Features |
Over-voltage tolerant inputs, Very high speed (tpd 5-10ns) |
Rating |
Catalog |
Operating temperature range (°C) |
-40 to 85 |

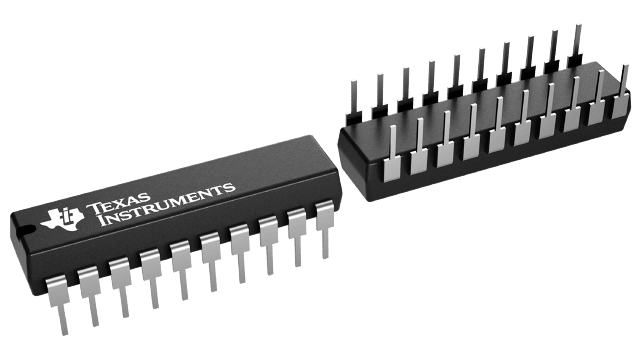

PDIP (N)-20-228.702 mm² 24.33 x 9.4
The x92FCT244T devices are octal buffers and line drivers designed to be employed as memory address drivers, clock drivers, and bus-oriented transmitters/receivers. These devices provide speed and drive capabilities equivalent to their fastest bipolar logic counterparts, while reducing power consumption. The input and output voltage levels allow direct interface with TTL, NMOS, and CMOS devices without external components.
These devices are fully specified for partial-power-down applications using Ioff. The Ioff circuitry disables the outputs, preventing damaging current backflow through the device when it is powered down.
