CSD86360Q5D
  • CSD86360Q5D
  • CSD86360Q5D

CSD86360Q5D

ACTIVE

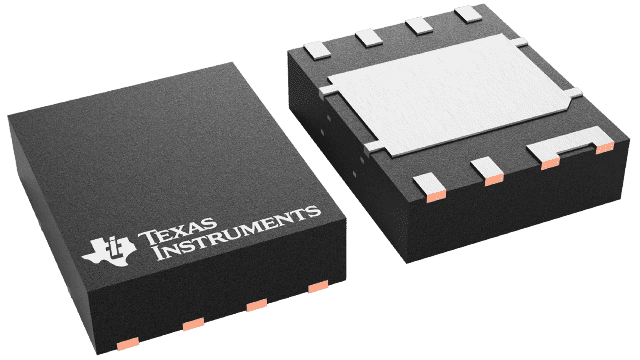

25-V, N channel synchronous buck NexFET™ power MOSFET, SON 5 mm x 6 mm power block, 50 A

Texas Instruments CSD86360Q5D Product Info

1 April 2026 3

Parameters

VDS (V)

25

VGS (V)

10

Type

Power block

Configuration

PowerBlock

ID - continuous drain current at TA=25°C (A)

50

Power loss (W)

2.6

Ploss current (A)

25

Features

Power supply

Rating

Catalog

Operating temperature range (°C)

-55 to 150

Package

LSON-CLIP (DQY)-8-30 mm² 5 x 6

Features

  • Half-Bridge Power Block
  • 91% System Efficiency at 25 A
  • Up to 50-A Operation
  • High-Frequency Operation (Up to 1.5 MHz)
  • High-Density SON 5-mm × 6-mm Footprint
  • Optimized for 5-V Gate Drive
  • Low-Switching Losses
  • Ultra-Low-Inductance Package
  • RoHS Compliant
  • Halogen Free
  • Lead-Free Terminal Plating
  • Half-Bridge Power Block
  • 91% System Efficiency at 25 A
  • Up to 50-A Operation
  • High-Frequency Operation (Up to 1.5 MHz)
  • High-Density SON 5-mm × 6-mm Footprint
  • Optimized for 5-V Gate Drive
  • Low-Switching Losses
  • Ultra-Low-Inductance Package
  • RoHS Compliant
  • Halogen Free
  • Lead-Free Terminal Plating

Description

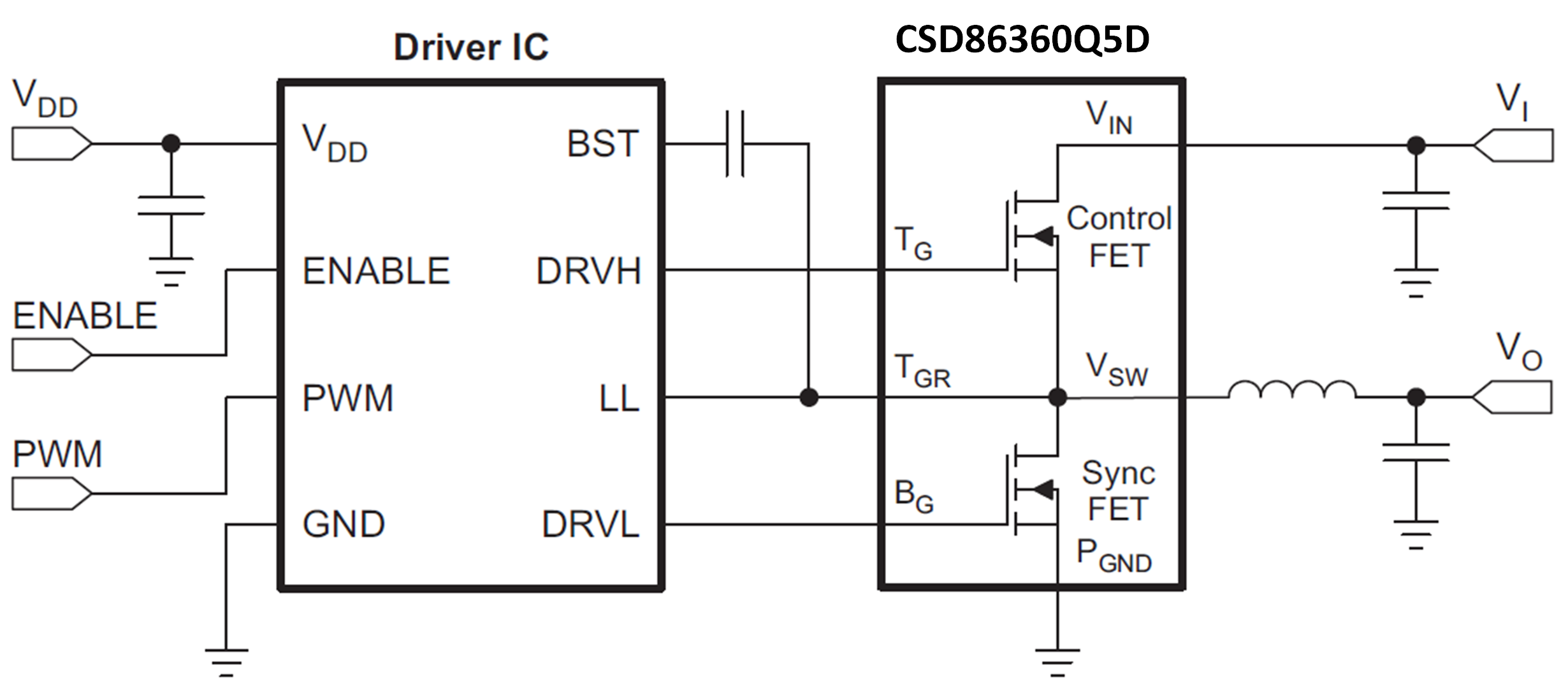

The CSD86360Q5D NexFET™ power block is an optimized design for synchronous buck applications offering high-current, high-efficiency, and high-frequency capability in a small 5-mm × 6-mm outline. Optimized for 5-V gate drive applications, this product offers a flexible solution capable of offering a high-density power supply when paired with any 5-V gate drive from an external controller/driver.
