CSD17571Q2
  • CSD17571Q2
  • CSD17571Q2
  • CSD17571Q2

CSD17571Q2

ACTIVE

30-V, N channel NexFET™ power MOSFET, single SON 2 mm x 2 mm, 29 mOhm

Texas Instruments CSD17571Q2 Product Info

1 April 2026 5

Parameters

VDS (V)

30

VGS (V)

20

Type

N-channel

Configuration

Single

Rds(on) at VGS=10 V (max) (mΩ)

24

Rds(on) at VGS=4.5 V (max) (mΩ)

29

VGSTH typ (typ) (V)

1.6

QG (typ) (nC)

2.4

QGD (typ) (nC)

0.6

QGS (typ) (nC)

0.9

ID - silicon limited at TC=25°C (A)

7.6

ID - package limited (A)

22

Logic level

Yes

Rating

Catalog

Operating temperature range (°C)

-55 to 150

Package

WSON (DQK)-6-4 mm² 2 x 2

Features

  • Low Qg and Qgd
  • Low Thermal Resistance
  • Avalanche Rated
  • Pb-Free Terminal Plating
  • RoHS Compliant
  • Halogen Free

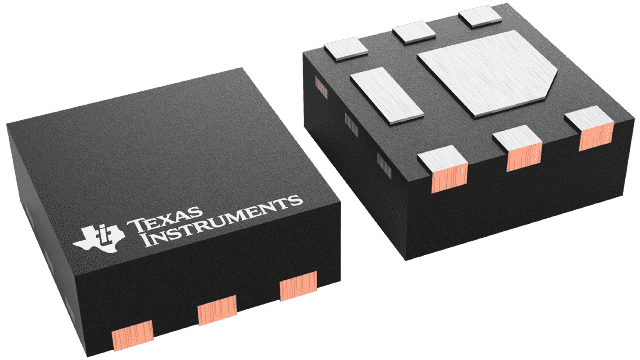

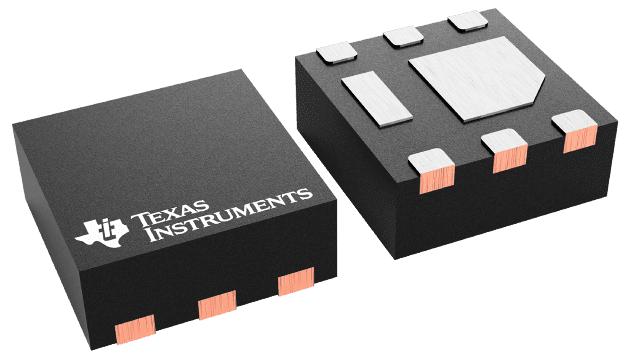

  • SON 2 mm × 2 mm Plastic Package
  • Low Qg and Qgd
  • Low Thermal Resistance
  • Avalanche Rated
  • Pb-Free Terminal Plating
  • RoHS Compliant
  • Halogen Free
  • SON 2 mm × 2 mm Plastic Package

Description

This 30 V, 20 mΩ, SON 2×2 NexFET™ power MOSFET is designed to minimize losses in power conversion and load management applications, while offering excellent thermal performance for the size of the package.
