ACTIVE
Bits (#) |
8 |
Data rate (max) (Mbps) |
150 |
Topology |
Push-Pull |
Direction control (typ) |
Fixed-direction |
Vin (min) (V) |
1.65 |
Vin (max) (V) |
5.5 |
Vout (min) (V) |
1.65 |
Vout (max) (V) |
5.5 |
Applications |
GPIO, SPI |
Features |
Output enable, Single supply |
Prop delay (ns) |
13.7 |
Technology family |
LVxT |
Supply current (max) (mA) |
1.5 |
Rating |
Catalog |
Operating temperature range (°C) |
-40 to 125 |

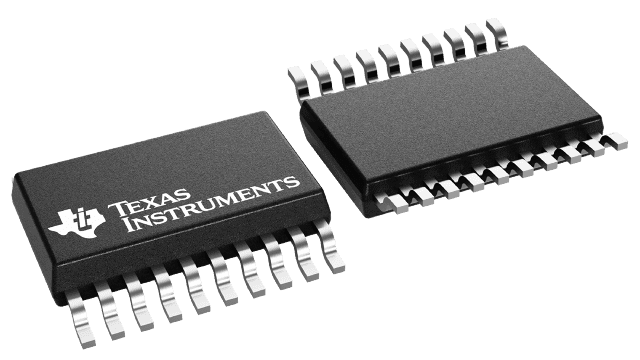

TSSOP (PW)-20-41.6 mm² 6.5 x 6.4
Down translation:
The SN74LV8T9541 is an octal buffer with 3-state outputs and Schmitt-trigger inputs.
The input is designed with a reduced threshold circuit to support up translation when the supply voltage is larger than the input voltage. Additionally, the 5V tolerant input pins enable down translation when the input voltage is larger than the supply voltage. The output level is always referenced to the supply voltage (VCC) and supports 1.8V, 2.5V, 3.3V, and 5V CMOS levels.
