CSD17527Q5A
  • CSD17527Q5A
  • CSD17527Q5A

CSD17527Q5A

ACTIVE

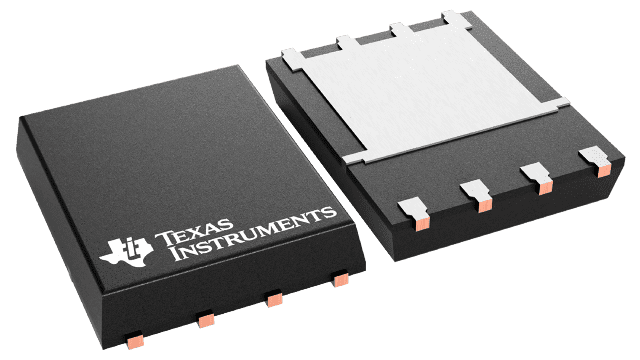

30-V, N channel NexFET™ power MOSFET, single SON 5 mm x 6 mm, 10.8 mOhm

Texas Instruments CSD17527Q5A Product Info

1 April 2026 1

Parameters

VDS (V)

30

VGS (V)

20

Type

N-channel

Configuration

Single

Rds(on) at VGS=10 V (max) (mΩ)

10.8

Rds(on) at VGS=4.5 V (max) (mΩ)

15.5

VGSTH typ (typ) (V)

1.6

QG (typ) (nC)

2.8

QGD (typ) (nC)

0.8

QGS (typ) (nC)

1.2

ID - silicon limited at TC=25°C (A)

65

ID - package limited (A)

65

Logic level

Yes

Rating

Catalog

Operating temperature range (°C)

-55 to 150

Package

VSONP (DQJ)-8-29.4 mm² 4.9 x 6

Features

  • Ultralow Qg and Qgd
  • Low Thermal Resistance
  • Avalanche Rated
  • Pb Free Terminal Plating
  • RoHS Compliant
  • Halogen Free
  • SON 5-mm × 6-mm Plastic Package
  • Ultralow Qg and Qgd
  • Low Thermal Resistance
  • Avalanche Rated
  • Pb Free Terminal Plating
  • RoHS Compliant
  • Halogen Free
  • SON 5-mm × 6-mm Plastic Package

Description

The NexFET™ power MOSFET has been designed to minimize losses in power conversion applications.

The NexFET™ power MOSFET has been designed to minimize losses in power conversion applications.
