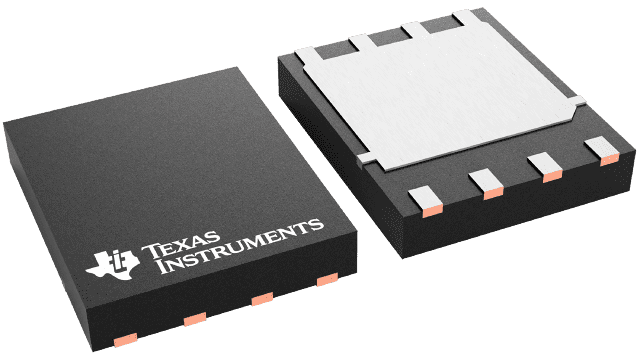

CSD16414Q5

ACTIVE

Texas Instruments CSD16414Q5 Product Info

1 April 2026 1

VDS (V)	25
VGS (V)	16
Type	N-channel
Configuration	Single
Rds(on) at VGS=10 V (max) (mΩ)	1.9
Rds(on) at VGS=4.5 V (max) (mΩ)	2.6
VGSTH typ (typ) (V)	1.6
QG (typ) (nC)	16.6
QGD (typ) (nC)	4.4
QGS (typ) (nC)	7.3
ID - silicon limited at TC=25°C (A)	100
ID - package limited (A)	100
Logic level	Yes
Rating	Catalog
Operating temperature range (°C)	-55 to 150

VSON-CLIP (DQH)-8-30 mm² 6 x 5

Ultra Low Qg and Qgd
Low Thermal Resistance
Avalanche Rated
Pb Free Terminal Plating
RoHS Compliant
Halogen Free
SON 5mm × 6mm Plastic Package
APPLICATIONS
- Point-of-Load Synchronous Buck Converter for Applications in
  Networking, Telecom and Computing Systems
- Optimized for Synchronous FET Applications

2NexFET is a trademark of Texas Instruments.

Ultra Low Qg and Qgd
Low Thermal Resistance
Avalanche Rated
Pb Free Terminal Plating
RoHS Compliant
Halogen Free
SON 5mm × 6mm Plastic Package
APPLICATIONS
- Point-of-Load Synchronous Buck Converter for Applications in
  Networking, Telecom and Computing Systems
- Optimized for Synchronous FET Applications

2NexFET is a trademark of Texas Instruments.

The NexFET™ power MOSFET has been designed to minimize losses in power conversion applications.
