ACTIVE
VDS (V) |
25 |
VGS (V) |
10 |
Type |
N-channel |
Configuration |
Single |
Rds(on) at VGS=4.5 V (max) (mΩ) |
5.5 |
VGSTH typ (typ) (V) |
1.1 |
QG (typ) (nC) |
6.2 |
QGD (typ) (nC) |
1.1 |
QGS (typ) (nC) |
1.8 |
ID - silicon limited at TC=25°C (A) |
21 |
ID - package limited (A) |
60 |
Logic level |
Yes |
Rating |
Catalog |
Operating temperature range (°C) |
-55 to 150 |

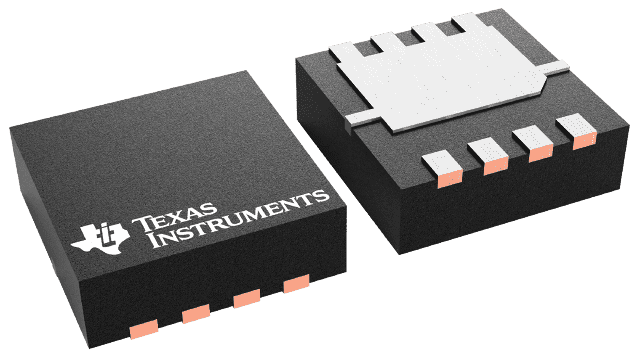

VSON-CLIP (DQG)-8-10.89 mm² 3.3 x 3.3
All other trademarks are the property of their respective owners
This 25-V, 3.8-mΩ, 3.3 × 3.3-mm SON NexFET™ power MOSFET has been designed to minimize losses in power conversion and optimized for 5-V gate drive applications.
