0
ACTIVE
VDS (V) |
25 |
VGS (V) |
10 |
Type |
N-channel |
Configuration |
Single |
Rds(on) at VGS=4.5 V (max) (mΩ) |
29 |
VGSTH typ (typ) (V) |
1.1 |
QG (typ) (nC) |
2 |
QGD (typ) (nC) |
0.4 |
QGS (typ) (nC) |
0.6 |
ID - silicon limited at TC=25°C (A) |
20 |
ID - package limited (A) |
5 |
Logic level |
Yes |
Rating |
Catalog |
Operating temperature range (°C) |
-55 to 150 |

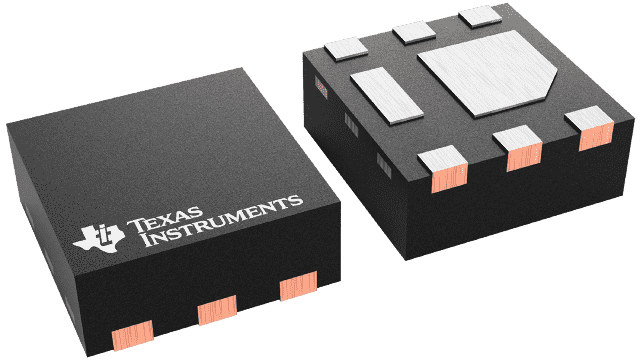

WSON (DQK)-6-4 mm² 2 x 2
This 25V, 19mΩ, 2mm × 2mm SON NexFET™ power MOSFET has been designed to minimize losses in power conversion and load management applications. The 2mm × 2mm SON package offers excellent thermal performance for the size of the package.
.
.
