Key Features

• Wi-Fi 6 (802.11ax)
• Bluetooth Low Energy 5.4 in CC33x1MOD
• Companion module to any processor or MCU host capable of running a TCP/IP stack
• Integrated 2.4GHz PA for a complete wireless system with up to +18.4dBm output power
• Operating temperature: –40°C to +85°C
• Application throughput up to 50Mbps
• Regulatory Certification
  • FCC: Z64-CC33SBMOD
  • IC/ISED: 451I-CC33SBMOD
  • ETSI/CE
  • MIC (TELEC): 201-250389 (Test Grade: 01), 201-250390 (Test Grade: 00)
• Based on CC3301 QuickTrack Qualified chipset
• Bluetooth Controller Subsystem Qualified

• Wi-Fi 6
  • 2.4GHz, 20MHz, single spatial stream
  • MAC, baseband, and RF transceiver with support for IEEE 802.11 b/g/n/ax
  • Target wake time (TWT), OFDMA, MU-MIMO (downlink), Basic Service Set Coloring, and trigger-based transmission for improved efficiency
  • Hardware-based encryption and decryption supporting WPA2 and WPA3
  • Excellent interoperability
  • Support for 4-bit SDIO or SPI host interfaces
• Bluetooth Low Energy 5.4
  • LE Coded PHYs (long range), LE 2M PHY (high speed), and Advertising Extension
  • Host controller interface (HCI) transport with an option for UART or shared SDIO
  • Internal coexistence mechanism with Wi-Fi to share the same RF chains and antenna
• Enhanced Security
  • Secured host interface
  • Firmware authentication
  • Anti-rollback protection
• Multirole support (for example, concurrent STA and AP) to connect with Wi-Fi devices on different RF channels (Wi-Fi networks)
• Optional antenna diversity or selection
• 3-wire or 1-wire PTA for external coexistence with additional 2.4GHz radios (for example, Thread or Zigbee)

• Clock sources

  • 40MHz XTAL fast clock (Integrated into the module)
  • Internal slow clock or external 32.768kHz slow clock
• Small package size

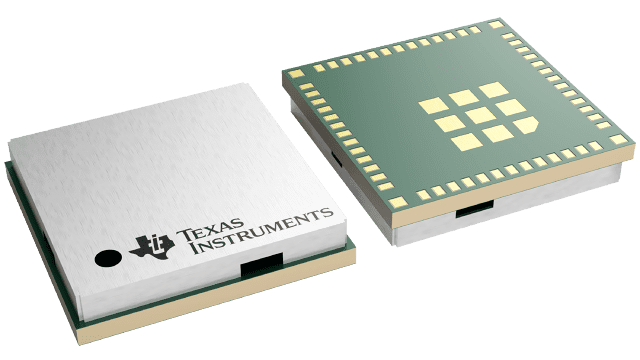

  • Easy to design with 65-pin, 11mm × 11mm LGA package, 0.65mm pitch
