TLV742P
  • TLV742P
  • TLV742P

TLV742P

ACTIVE

200-mA low-IQ low-dropout (LDO) voltage regulator

Texas Instruments TLV742P Product Info

1 April 2026 2

Parameters

Rating

Catalog

Vin (max) (V)

5.5

Vin (min) (V)

2

Iout (max) (A)

0.2

Output options

Fixed Output

Vout (max) (V)

5

Vout (min) (V)

0.85

Fixed output options (V)

1.1, 1.2, 1.5, 1.8, 2.5, 2.7, 2.8, 2.9, 3, 3.3

Noise (µVrms)

45

PSRR at 100 KHz (dB)

40

Iq (typ) (mA)

0.025

Features

Enable, Output discharge

Thermal resistance θJA (°C/W)

180.4

Load capacitance (min) (µF)

0.1

Regulated outputs (#)

1

Accuracy (%)

1.5

Dropout voltage (Vdo) (typ) (mV)

250

Operating temperature range (°C)

-40 to 125

Package

X2SON (DQN)-4-1 mm² 1 x 1

Features

  • Input Voltage Range From 2 V to 5.5 V
  • Fixed-Output Voltage Combinations Possible From 0.85 V to 5 V in 50-mV Steps(1)
  • 0.5% Typical Accuracy
  • High PSRR:
    • 55 dB at 1 MHz
  • IQ When Enabled: 25 µA
  • IQ When Disabled: 1 µA
  • Active Output Discharge
  • Thermal Shutdown and Overcurrent Protection
  • Package:
    • 1-mm × 1-mm DQN (X2SON)
  • Input Voltage Range From 2 V to 5.5 V
  • Fixed-Output Voltage Combinations Possible From 0.85 V to 5 V in 50-mV Steps(1)
  • 0.5% Typical Accuracy
  • High PSRR:
    • 55 dB at 1 MHz
  • IQ When Enabled: 25 µA
  • IQ When Disabled: 1 µA
  • Active Output Discharge
  • Thermal Shutdown and Overcurrent Protection
  • Package:
    • 1-mm × 1-mm DQN (X2SON)

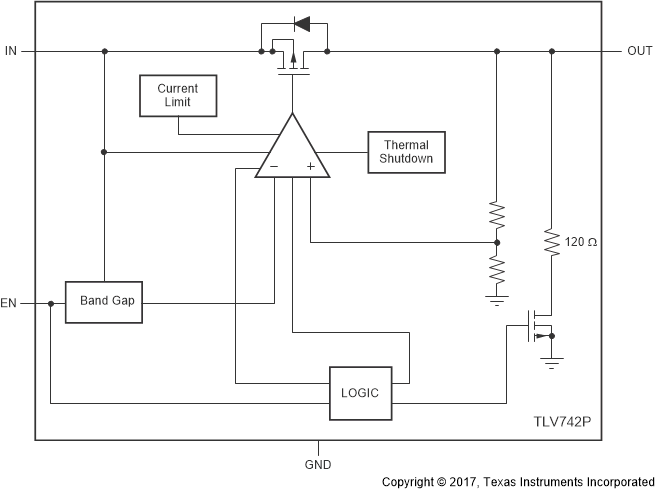

Description

The TLV742P series of low-dropout linear voltage regulators (LDOs) are optimized to providing excellent performance by supporting a wide output voltage range. The LDOs can directly regulate a single cell Li-ion battery input-to-output voltage as low as 0.85 V.  If used to post-regulate a DC-DC converter output, the high PSRR of 55 dB at 1 MHz suppresses ripple to provide a stable low-noise, well-regulated VOUT.

The TLV742P has an active output discharge feature that helps ensure the output is kept low while the system is disabled, in standby mode, or in sleep mode.  Additionally, overcurrent protection is present to protect the device in the event of an output short along with thermal shutdown to prevent overheating.

The TLV742P series of voltage regulators are available in a 1 mm × 1 mm X2SON package to minimize PCB area.
