Resolution (Bits) |
16 |
Sample rate (max) (ksps) |
20 |
Number of input channels |
1 |
Interface type |
Serial |
Architecture |
Delta-Sigma Modulator |
Input type |
Differential |
Rating |
Automotive |
Reference mode |
Internal |
Input voltage range (max) (V) |
1 |
Input voltage range (min) (V) |
-1 |
Operating temperature range (°C) |
-40 to 125 |
Power consumption (typ) (mW) |
27 |
Analog supply voltage (min) (V) |
3 |
Analog supply voltage (max) (V) |
5.5 |
SNR (dB) |
86 |
Digital supply (min) (V) |
3 |
Digital supply (max) (V) |
5.5 |
SOIC (D)-8-29.4 mm² 4.9 x 6
The AMC1035-Q1 is a precision, delta-sigma (ΔΣ) modulator that operates from a single 3.0-V to 5.5-V supply and with an externally supplied clock signal in the range of 9 MHz to 21 MHz. In Manchester mode, the specified clock range is 9 MHz to 11 MHz. The differential ±1-V input structure of the device is optimized for voltage and temperature sensing applications.
Select the output bitstream of the AMC1035-Q1 to be Manchester coded to prevent setup and hold time requirement considerations of the receiving device and to reduce overall circuit layout efforts. When used with a digital filter (such as integrated in the TMS320F28004x, TMS320F2807x, or TMS320F2837x microcontroller families) to decimate the output bitstream, the device can achieve 16 bits of resolution with a dynamic range of 87 dB at a data rate of 82 kSPS.
The internal reference source of the AMC1035-Q1 supports a ratiometric circuit architecture to minimize the negative impact of the supply voltage variation and temperature drift on the accuracy of the measurement.

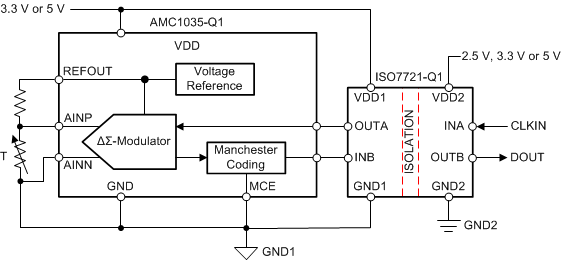

The AMC1035-Q1 can also be used for high common-mode AC voltage sensing with a digital isolator and isolated power supply.
