Texas Instruments AM26LV31E Product Info

Parameters

Number of receivers	0
Number of transmitters	4
Duplex	Half
Supply voltage (nom) (V)	3.3
Signaling rate (max) (Mbps)	32
IEC 61000-4-2 contact (±V)	8000
Fault protection (V)	-7 to 7
Common-mode range (V)	-7 to 7
Number of nodes	32
Features	IEC ESD protection
Isolated	No
Supply current (max) (µA)	100
Rating	Catalog
Operating temperature range (°C)	-40 to 85

Package

SOIC (D)-16-59.4 mm² 9.9 x 6

Features

Meets or exceeds standards TIA/EIA-422-B and ITU recommendation V.11
Operates from a single 3.3V power supply
ESD Protection for RS422 bus pins
- ±15-kV Human-body model (HBM)
- ±8-kV IEC61000-4-2, Contact discharge
- ±15-kV IEC61000-4-2, Air-gap discharge
Switching rates up to 32MHz
Propagation delay time: 8ns typical
Pulse skew time: 500ps typical
High output-drive current: ±30mA
Controlled rise and fall times: 5ns typical
Differential output voltage with 100Ω load: 2.6V typical
Accepts 5V logic inputs with 3.3V supply
Ioff supports partial-power-down mode operation
Driver output short-protection circuit
Glitch-free power-up and power-down protection

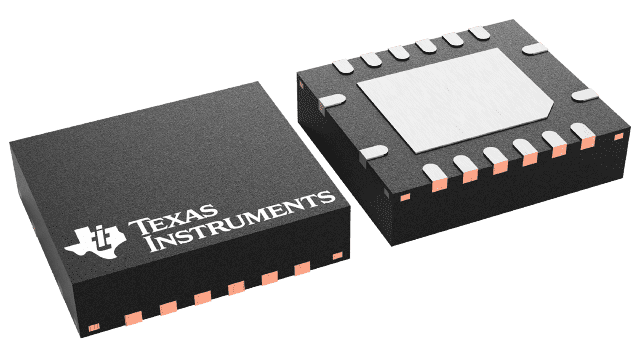

Package options: SO, SOIC, TSSOP, VQFN

Meets or exceeds standards TIA/EIA-422-B and ITU recommendation V.11
Operates from a single 3.3V power supply
ESD Protection for RS422 bus pins
- ±15-kV Human-body model (HBM)
- ±8-kV IEC61000-4-2, Contact discharge
- ±15-kV IEC61000-4-2, Air-gap discharge
Switching rates up to 32MHz
Propagation delay time: 8ns typical
Pulse skew time: 500ps typical
High output-drive current: ±30mA
Controlled rise and fall times: 5ns typical
Differential output voltage with 100Ω load: 2.6V typical
Accepts 5V logic inputs with 3.3V supply
Ioff supports partial-power-down mode operation
Driver output short-protection circuit
Glitch-free power-up and power-down protection
Package options: SO, SOIC, TSSOP, VQFN

Description

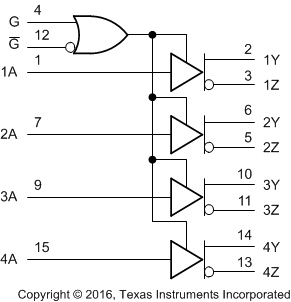

The AM26LV31E is a quadruple differential line driver with 3-state outputs. This driver has ±15kV ESD (HBM and IEC61000-4-2, Air-Gap Discharge) and ±8kV ESD (IEC61000-4-2, Contact Discharge) protection. This device is designed to meet TIA/EIA-422-B and ITU Recommendation V.11 drivers with reduced supply voltage.

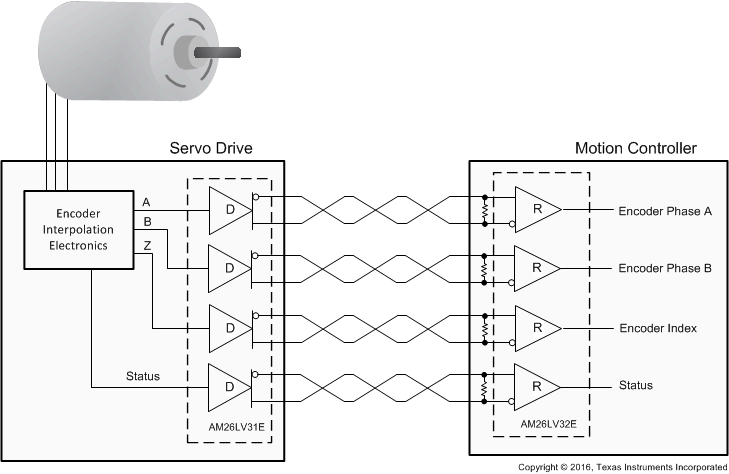

The device is optimized for balanced-bus transmission at switching rates up to 32MHz. The outputs have high current capability for driving balanced lines, such as twisted-pair transmission lines, and provide a high impedance in the power-off condition.

The AM26LV31EI is characterized for operation from –40°C to +85°C.

The AM26LV31E is a quadruple differential line driver with 3-state outputs. This driver has ±15kV ESD (HBM and IEC61000-4-2, Air-Gap Discharge) and ±8kV ESD (IEC61000-4-2, Contact Discharge) protection. This device is designed to meet TIA/EIA-422-B and ITU Recommendation V.11 drivers with reduced supply voltage.

The device is optimized for balanced-bus transmission at switching rates up to 32MHz. The outputs have high current capability for driving balanced lines, such as twisted-pair transmission lines, and provide a high impedance in the power-off condition.

The AM26LV31EI is characterized for operation from –40°C to +85°C.
