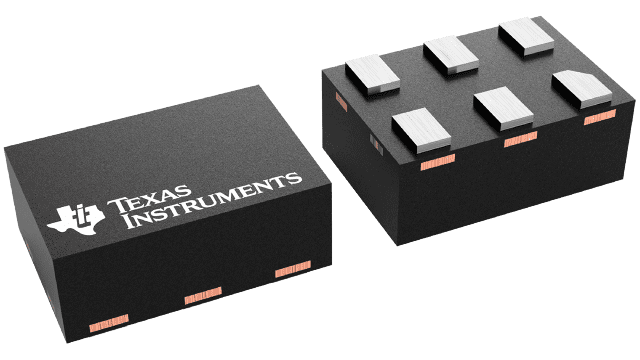

SN74LVC1G17-Q1

ACTIVE

Texas Instruments SN74LVC1G17-Q1 Product Info

1 April 2026 0

Technology family	LVC
Supply voltage (min) (V)	1.65
Supply voltage (max) (V)	6.5
Number of channels	1
IOL (max) (mA)	32
Supply current (max) (µA)	20
IOH (max) (mA)	-32
Input type	Schmitt-Trigger
Output type	Push-Pull
Features	Balanced outputs, Over-voltage tolerant inputs, Partial power down (Ioff), Very high speed (tpd 5-10ns)
Rating	Automotive
Operating temperature range (°C)	-40 to 125

SOT-23 (DBV)-5-8.12 mm² 2.9 x 2.8

Qualified for automotive applications
Supports 5V VCC operation
Inputs accept voltages to 5.5V
Maximum tpd of 8ns at 3.3V
Low power consumption, 20µA maximum ICC
±24mA output drive at 3.3V
Ioff supports live insertion, partial-power-down mode, and back-drive protection
ESD protection exceeds JEDEC JS-001
- 2000V human-body model
- 1000V charged-device model

Qualified for automotive applications
Supports 5V VCC operation
Inputs accept voltages to 5.5V
Maximum tpd of 8ns at 3.3V
Low power consumption, 20µA maximum ICC
±24mA output drive at 3.3V
Ioff supports live insertion, partial-power-down mode, and back-drive protection
ESD protection exceeds JEDEC JS-001
- 2000V human-body model
- 1000V charged-device model

This single Schmitt-trigger buffer is designed for 1.65V to 5.5V VCC operation.

The SN74LVC1G17-Q1 device contains one buffer and performs the Boolean function Y = A.

The CMOS device has high output drive while maintaining low static power dissipation over a broad VCC operating range.

The SN74LVC1G17-Q1 is available in a variety of packages.

This single Schmitt-trigger buffer is designed for 1.65V to 5.5V VCC operation.

The SN74LVC1G17-Q1 device contains one buffer and performs the Boolean function Y = A.

The CMOS device has high output drive while maintaining low static power dissipation over a broad VCC operating range.

The SN74LVC1G17-Q1 is available in a variety of packages.
