0
ACTIVE
Number of receivers |
0 |
Number of transmitters |
4 |
Duplex |
Half |
Supply voltage (nom) (V) |
5 |
Signaling rate (max) (Mbps) |
10 |
IEC 61000-4-2 contact (±V) |
None |
Fault protection (V) |
-7 to 7 |
Common-mode range (V) |
-7 to 7 |
Number of nodes |
32 |
Isolated |
No |
Supply current (max) (µA) |
80000 |
Rating |
Catalog |
Operating temperature range (°C) |
-40 to 85 |

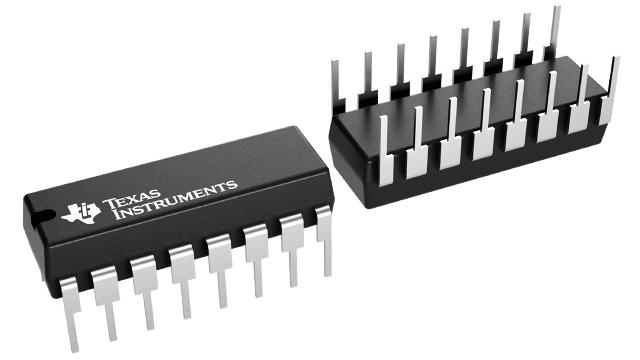

PDIP (N)-16-181.42 mm² 19.3 x 9.4

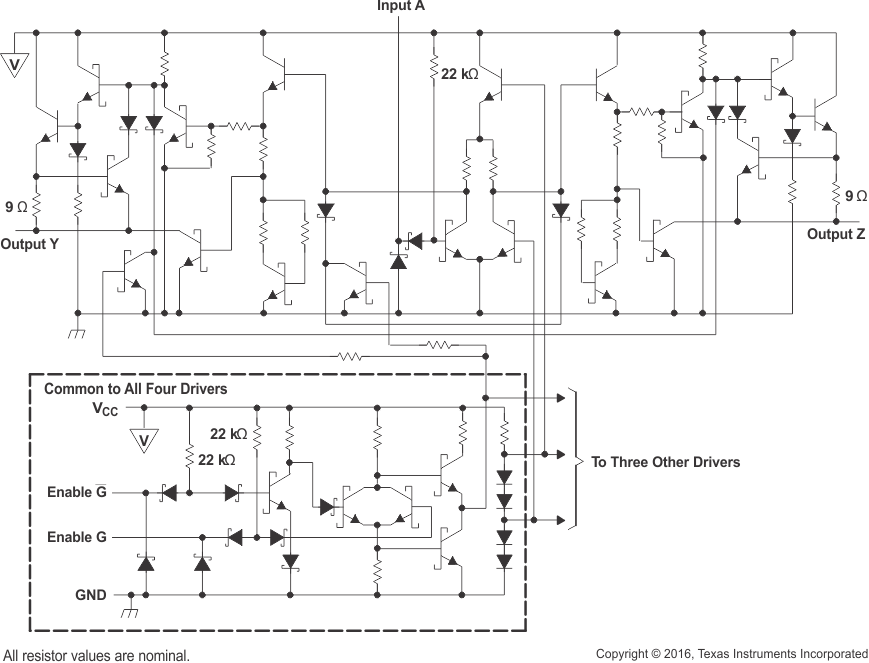

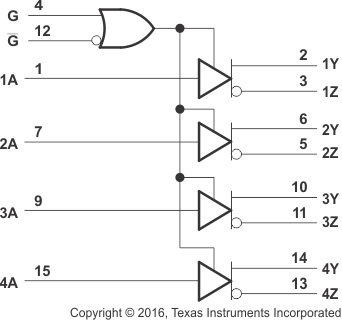

The AM26LS31CN-E family of devices is a quadruple complementary-output line driver designed to meet the requirements of ANSI TIA/EIA-422-B and ITU (formerly CCITT) Recommendation V.11. The 3-state outputs have high-current capability for driving balanced lines such as twisted-pair or parallel-wire transmission lines, and are in the high-impedance state in the power-off condition. The enable function is common to all four drivers and offers the choice of an active-high or active-low enable (G, G) input. Low-power Schottky circuitry reduces power consumption without sacrificing speed.
