TPS22930A
  • TPS22930A
  • TPS22930A

TPS22930A

ACTIVE

5.5-V, 2-A, 35-mΩ load switch

Texas Instruments TPS22930A Product Info

1 April 2026 0

Parameters

Imax (A)

2

Vin (max) (V)

5.5

Vin (min) (V)

1.4

Number of channels

1

Features

Inrush current control, Reverse current blocking, Reverse current protection, Under voltage lock out

Quiescent current (Iq) (typ) (µA)

2.1

Soft start

Fixed Rise Time

Rating

Catalog

Ron (typ) (mΩ)

36

Shutdown current (ISD) (typ) (µA)

0.2

Current limit type

None

Function

Inrush current control

FET

Internal

Operating temperature range (°C)

-40 to 85

Device type

Load switches

Package

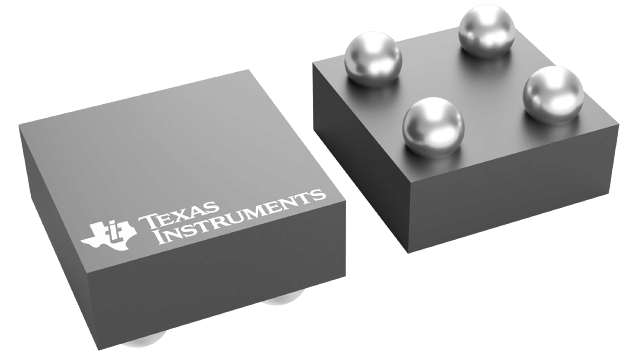

DSBGA (YZV)-4-1.5625 mm² 1.25 x 1.25

Features

  • Integrated single channel load switch
  • Ultra small four terminal wafer-chip-scale package (nominal dimensions shown see addendum for details)
    • 0.9 mm × 0.9 mm, 0.5 mm pitch, 0.5-mm height (YZV)
  • Input voltage range: 1.4 V to 5.5 V
  • Ultra low RON resistance
    • RON = 35 mΩ at VIN = 5 V
    • RON = 36 mΩ at VIN = 3.6 V
    • RON = 49 mΩ at VIN = 1.8 V
  • 2-A maximum continuous switch current
  • Low quiescent current (< 3 µA)
  • Low control input threshold enables use of 1.2-V/1.8-V/2.5-V/3.3-V logic
  • Controlled slew rate
  • Under voltage lockout
  • Reverse current protection when disabled
  • Integrated single channel load switch
  • Ultra small four terminal wafer-chip-scale package (nominal dimensions shown see addendum for details)
    • 0.9 mm × 0.9 mm, 0.5 mm pitch, 0.5-mm height (YZV)
  • Input voltage range: 1.4 V to 5.5 V
  • Ultra low RON resistance
    • RON = 35 mΩ at VIN = 5 V
    • RON = 36 mΩ at VIN = 3.6 V
    • RON = 49 mΩ at VIN = 1.8 V
  • 2-A maximum continuous switch current
  • Low quiescent current (< 3 µA)
  • Low control input threshold enables use of 1.2-V/1.8-V/2.5-V/3.3-V logic
  • Controlled slew rate
  • Under voltage lockout
  • Reverse current protection when disabled

Description

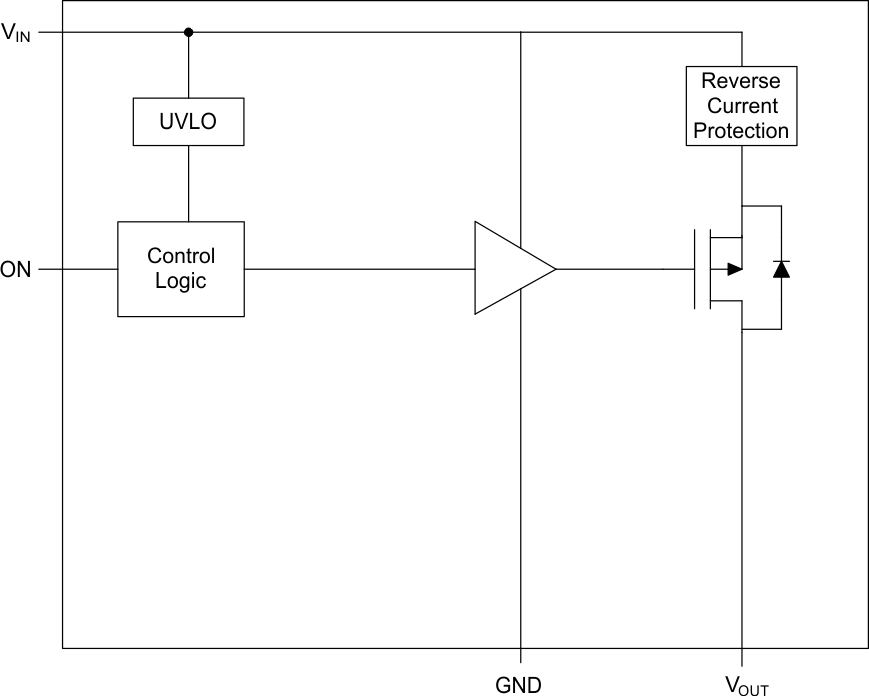

The TPS22930 is a small, low RON load switch with controlled turn on. The device contains a P-channel MOSFET that can operate over an input voltage range of 1.4 V to 5.5 V. The switch is controlled by an on/off input (ON), which is capable of interfacing directly with low-voltage control signals. The TPS22930 is active high enable.

The TPS22930 device provides circuit breaker functionality by disabling the body diode during reverse voltage (also known as reverse current) situations. Reverse current protection is active only when the power-switch is disabled (off). The device disengages the body diode when the output voltage (VOUT) is driven higher than the input (VIN) to stop the flow of current towards the input side of the switch. Additionally, under-voltage lockout (UVLO) protection turns the switch off if the input voltage is too low.

The slew rate of the device is internally controlled in order to avoid inrush current.

The TPS22930 is available in an ultra-small, space-saving 4-pin CSP package and is characterized for operation over the free-air temperature range of –40°C to 85°C.

The TPS22930 is a small, low RON load switch with controlled turn on. The device contains a P-channel MOSFET that can operate over an input voltage range of 1.4 V to 5.5 V. The switch is controlled by an on/off input (ON), which is capable of interfacing directly with low-voltage control signals. The TPS22930 is active high enable.

The TPS22930 device provides circuit breaker functionality by disabling the body diode during reverse voltage (also known as reverse current) situations. Reverse current protection is active only when the power-switch is disabled (off). The device disengages the body diode when the output voltage (VOUT) is driven higher than the input (VIN) to stop the flow of current towards the input side of the switch. Additionally, under-voltage lockout (UVLO) protection turns the switch off if the input voltage is too low.

The slew rate of the device is internally controlled in order to avoid inrush current.

The TPS22930 is available in an ultra-small, space-saving 4-pin CSP package and is characterized for operation over the free-air temperature range of –40°C to 85°C.
