ADS802
  • ADS802
  • ADS802

ADS802

ACTIVE

12-Bit, 10-MSPS Analog-to-Digital Converter (ADC)

Texas Instruments ADS802 Product Info

1 April 2026 3

Parameters

Sample rate (max) (Msps)

10

Resolution (Bits)

12

Number of input channels

1

Interface type

Parallel CMOS

Analog input BW (MHz)

65

Features

Low Power

Rating

Catalog

Peak-to-peak input voltage range (V)

1.25, 3.25

Power consumption (typ) (mW)

260

Architecture

Pipeline

SNR (dB)

67

ENOB (Bits)

10.7

SFDR (dB)

77

Operating temperature range (°C)

-40 to 85

Input buffer

Yes

Package

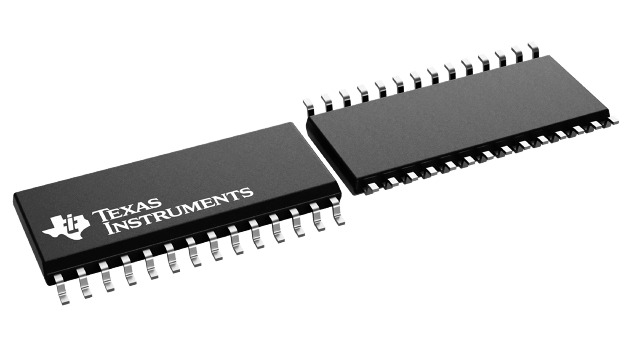

SOIC (DW)-28-184.37 mm² 17.9 x 10.3

Features

  • NO MISSING CODES
  • LOW POWER:250mW
  • INTERNAL REFERENCE
  • WIDEBAND TRACK-AND-HOLD:65MHz
  • SINGLE +5V SUPPLY
  • APPLICATIONS
    • IF AND BASEBAND DIGITIZATION
    • DATA ACQUISITION CARDS
    • TEST INSTRUMENTATION
    • CCD IMAGING
      • Copiers
      • Scanners
      • Cameras
    • VIDEO DIGITIZING
    • GAMMA CAMERAS

All trademarks are the property of their respective owners.

  • NO MISSING CODES
  • LOW POWER:250mW
  • INTERNAL REFERENCE
  • WIDEBAND TRACK-AND-HOLD:65MHz
  • SINGLE +5V SUPPLY
  • APPLICATIONS
    • IF AND BASEBAND DIGITIZATION
    • DATA ACQUISITION CARDS
    • TEST INSTRUMENTATION
    • CCD IMAGING
      • Copiers
      • Scanners
      • Cameras
    • VIDEO DIGITIZING
    • GAMMA CAMERAS

All trademarks are the property of their respective owners.

Description

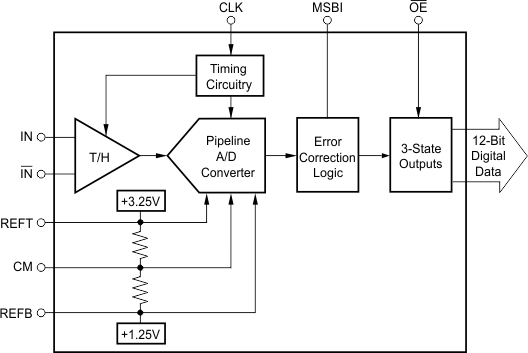

The ADS802 is a low-power, monolithic 12-bit, 10MHz Analog-to-Digital (A/D) converter utilizing a small geometry CMOS process. This complete converter includes a 12-bit quantizer, wideband track-and-hold, reference and three-state outputs. It operates from a single +5V power supply and can be configured to accept either differential or single-ended input signals.

The ADS802 employs digital error correction in order to provide excellent Nyquist differential linearity performance for demanding imaging applications. Its low distortion, high SNR, and high-oversampling capability give it the extra margin needed for telecommunications, test instrumentation, and video applications.

This high-performance A/D converter is specified for ac and DC performance at a 10MHz sampling rate. The ADS802 is available in an SO-28 package.
