ACTIVE
Resolution (Bits) |
14 |
Sample rate (max) (ksps) |
750 |
Number of input channels |
2 |
Interface type |
SPI |
Architecture |
SAR |
Input type |
Pseudo-Differential |
Multichannel configuration |
Simultaneous Sampling |
Rating |
Catalog |
Reference mode |
External |
Input voltage range (max) (V) |
5.5 |
Input voltage range (min) (V) |
0 |
Features |
Small Size |
Operating temperature range (°C) |
-40 to 125 |
Power consumption (typ) (mW) |
40 |
Analog supply voltage (min) (V) |
4.5 |
Analog supply voltage (max) (V) |
5.5 |
SNR (dB) |
81.5 |
Digital supply (min) (V) |
1.65 |
Digital supply (max) (V) |
5.5 |

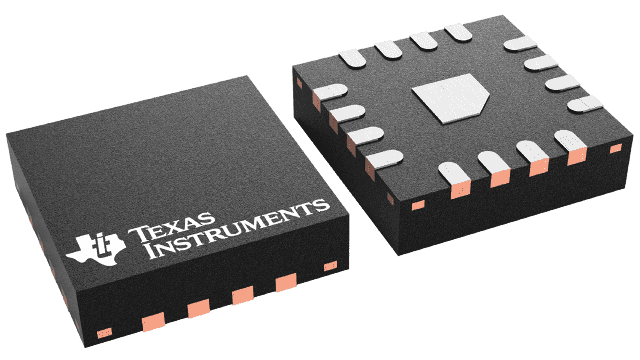

WQFN (RTE)-16-9 mm² 3 x 3

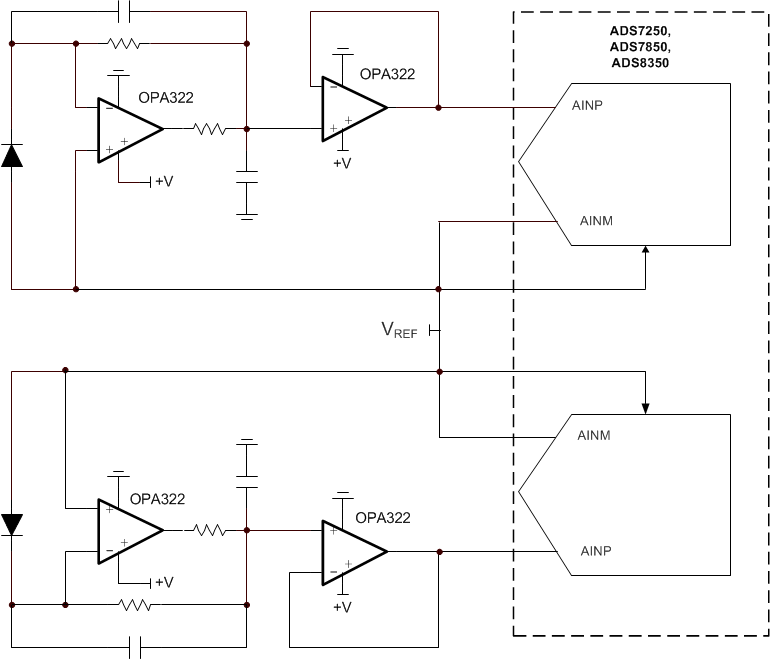

The ADS8350, ADS7850, and ADS7250 devices belong to a family of pin-compatible, dual, high-speed, simultaneous-sampling, analog-to-digital converters (ADCs) that support pseudo-differential analog inputs. All devices support a simple serial interface that can operate over a wide power-supply range, enabling easy communication with a large variety of host controllers.
All devices are fully specified over the extended industrial temperature range (–40°C to 125°C) and are available in a pin-compatible, WQFN-16 (3 mm × 3 mm) package.
