ACTIVE
Number of channels |
1 |
Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V) |
15.5 |
Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V) |
2.7 |
Rail-to-rail |
In, Out |
GBW (typ) (MHz) |
1.1 |
Slew rate (typ) (V/µs) |
1.1 |
Vos (offset voltage at 25°C) (max) (mV) |
7 |
Iq per channel (typ) (mA) |
0.5 |
Vn at 1 kHz (typ) (nV√Hz) |
37 |
Rating |
Automotive |
Operating temperature range (°C) |
-40 to 125 |
TI functional safety category |
Functional Safety-Capable |
Offset drift (typ) (µV/°C) |
1 |
Input bias current (max) (pA) |
64 |
CMRR (typ) (dB) |
82 |
Iout (typ) (A) |
0.024 |
Architecture |
CMOS |
Input common mode headroom (to negative supply) (typ) (V) |
-0.3 |
Input common mode headroom (to positive supply) (typ) (V) |
0.3 |
Output swing headroom (to negative supply) (typ) (V) |
0.1 |
Output swing headroom (to positive supply) (typ) (V) |
-0.1 |
SOT-23 (DBV)-5-8.12 mm² 2.9 x 2.8

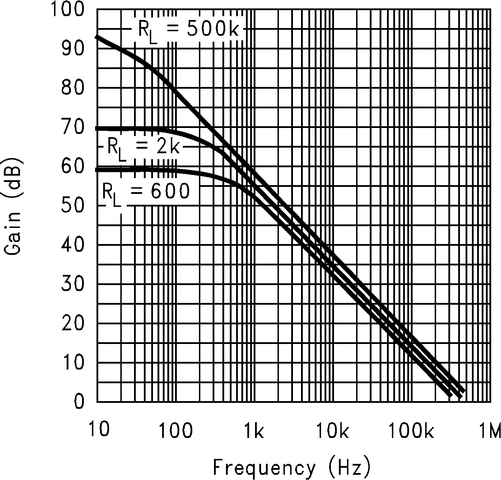

The LMC7101Q-Q1 device is a high-performance, automotive, CMOS operational amplifier available in a space-saving, 5-pin, SOT-23 tiny package. This design makes the LMC7101Q-Q1 an excellent choice for space- and weight-critical designs. The performance is similar to the single amplifier of the LMC6482 and LMC6484, with rail-to-rail input and output, high open-loop gain, low distortion, and low-supply currents.
The main benefits of the tiny package are most apparent in space-constrained applications. The tiny amplifiers can be placed on a board where needed, thus simplifying board layout.
