ACTIVE
Number of channels |
1 |
Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V) |
5.5 |
Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V) |
1.6 |
Rail-to-rail |
In, Out |
GBW (typ) (MHz) |
0.0062 |
Slew rate (typ) (V/µs) |
0.0024 |
Vos (offset voltage at 25°C) (max) (mV) |
1 |

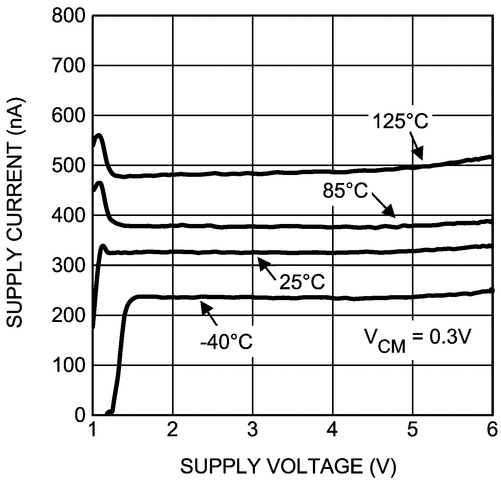

Iq per channel (typ) (mA) |
0.000351 |
Vn at 1 kHz (typ) (nV√Hz) |
255 |
Rating |
Catalog |
Operating temperature range (°C) |
-40 to 125 |
Offset drift (typ) (µV/°C) |
0.4 |
Features |
EMI Hardened |
Input bias current (max) (pA) |
1 |
CMRR (typ) (dB) |
102 |
Iout (typ) (A) |
0.022 |
Architecture |
CMOS |
Input common mode headroom (to negative supply) (typ) (V) |
0.0004 |
Input common mode headroom (to positive supply) (typ) (V) |
0.000351 |
Output swing headroom (to negative supply) (typ) (V) |
0.003 |
Output swing headroom (to positive supply) (typ) (V) |
-0.003 |
PDIP (P)-8-92.5083 mm² 9.81 x 9.43

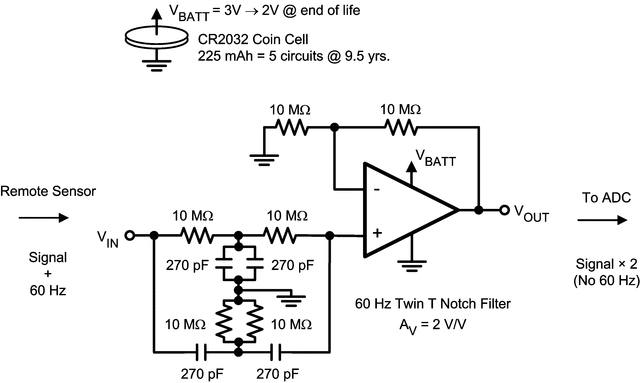

The LPV521 is a single, nanopower, 552nW amplifier designed for ultra-long-life battery applications. The operating voltage range of 1.6V to 5.5V coupled with typically 351nA of supply current make this device an excellent choice for RFID readers and remote-sensor nanopower applications. The device has an input common-mode voltage 0.1V over the rails, specified TCVOS, and voltage-swing-to-the-rail output performance. The LPV521 has a carefully designed CMOS input stage that outperforms competitors with typically 40fA IBIAS currents. This low input current significantly reduces IBIAS and IOS errors introduced in megohm resistance, high-impedance photodiode and charge sense applications. The LPV521 is a member of the PowerWise family, and has an exceptional power-to-performance ratio.
The wide input common-mode voltage range, specified 1mV VOS and 3.5µV/°C TCVOS enables accurate and stable measurement for both high-side and low-side current sensing.
EMI protection is designed into the device to reduce sensitivity to unwanted RF signals from cell phones or other RFID readers.

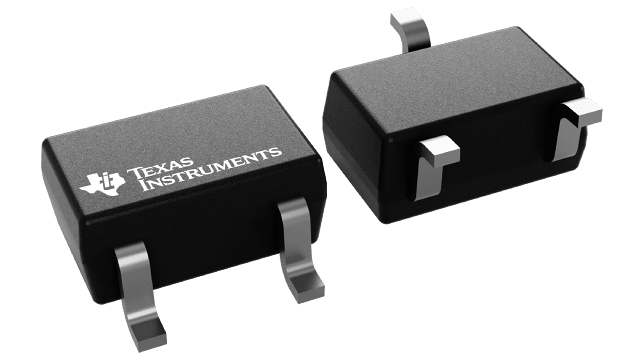

The LPV521 is offered in 5-pin SC70 and 8-pin PDIP packages.
