ADS127L14
  • ADS127L14
  • ADS127L14
  • ADS127L14
  • ADS127L14

ADS127L14

ACTIVE

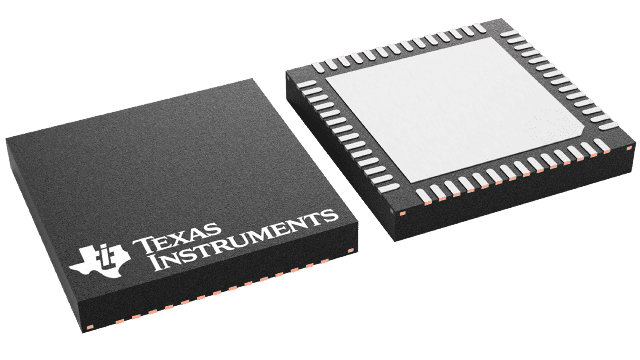

Four-channel, simultaneous-sampling, 512-kSPS, wideband 24-bit delta-sigma ADC

Texas Instruments ADS127L14 Product Info

1 April 2026 0

Parameters

Resolution (Bits)

24

Sample rate (max) (ksps)

1365

Number of input channels

4

Interface type

SPI

Architecture

Delta-Sigma

Input type

Differential, Pseudo-Differential, Single-ended

Multichannel configuration

Simultaneous Sampling

Rating

Catalog

Reference mode

External

Input voltage range (max) (V)

5

Input voltage range (min) (V)

0

Features

Daisy-Chainable, Oscillator, Wideband

Operating temperature range (°C)

-40 to 125

Power consumption (typ) (mW)

11

Analog supply voltage (min) (V)

2.85

Analog supply voltage (max) (V)

5.5

SNR (dB)

110

Digital supply (min) (V)

1.65

Digital supply (max) (V)

1.95

Package

VQFN (RSH)-56-49 mm² 7 x 7

Features

  • Simultaneously measure four or eight channels
  • Wideband filter mode: up to 512kSPS
  • Low-latency filter mode: up to 1365kSPS
  • Power-scalable speed modes:
    • Max speed: 512kSPS
      • 83mW (ADS127L14)
      • 165mW (ADS127L18)
    • High speed: 400kSPS
      • 64mW (ADS127L14)
      • 128mW (ADS127L18)
    • Mid speed: 200kSPS
      • 37mW (ADS127L14)
      • 74mW (ADS127L18)
    • Low speed: 50kSPS
      • 12mW (ADS127L14)
      • 24mW (ADS127L18)
  • AC performance with DC precision: (High-Speed Mode)
    • Dynamic range at 200kSPS: 112dB (typical)
    • THD: –118dB (typical)
    • INL: 1ppm of FSR (typical)
    • Offset drift: 10nV/°C (typical)
    • Gain drift: 0.5ppm/°C (typical)
  • Precharge buffered signal inputs
  • Programmable by pin setting or SPI
  • Frame-sync port for output data
  • Internal or external clock operation
  • Analog supply voltage: 2.85V to 5.5V
  • Simultaneously measure four or eight channels
  • Wideband filter mode: up to 512kSPS
  • Low-latency filter mode: up to 1365kSPS
  • Power-scalable speed modes:
    • Max speed: 512kSPS
      • 83mW (ADS127L14)
      • 165mW (ADS127L18)
    • High speed: 400kSPS
      • 64mW (ADS127L14)
      • 128mW (ADS127L18)
    • Mid speed: 200kSPS
      • 37mW (ADS127L14)
      • 74mW (ADS127L18)
    • Low speed: 50kSPS
      • 12mW (ADS127L14)
      • 24mW (ADS127L18)
  • AC performance with DC precision: (High-Speed Mode)
    • Dynamic range at 200kSPS: 112dB (typical)
    • THD: –118dB (typical)
    • INL: 1ppm of FSR (typical)
    • Offset drift: 10nV/°C (typical)
    • Gain drift: 0.5ppm/°C (typical)
  • Precharge buffered signal inputs
  • Programmable by pin setting or SPI
  • Frame-sync port for output data
  • Internal or external clock operation
  • Analog supply voltage: 2.85V to 5.5V

Description

The ADS127L14 (quad) and ADS127L18 (octal) are 24-bit, delta-sigma (ΔΣ), analog-to-digital converters (ADCs) based on the single-channel ADS127L11. The devices provide simultaneous sampling of four or eight channels with data rates up to 512kSPS (wideband filter mode) and 1365kSPS (low-latency filter mode).

The ADS127L14 (quad) and ADS127L18 (octal) are 24-bit, delta-sigma (ΔΣ), analog-to-digital converters (ADCs) based on the single-channel ADS127L11. The devices provide simultaneous sampling of four or eight channels with data rates up to 512kSPS (wideband filter mode) and 1365kSPS (low-latency filter mode).
