ACTIVE
Technology family |
ALVC |
Supply voltage (min) (V) |
1.65 |
Supply voltage (max) (V) |
3.6 |
Number of channels |
16 |
IOL (max) (mA) |
24 |
Supply current (max) (µA) |
40 |
IOH (max) (mA) |
-24 |
Input type |
Standard CMOS |
Output type |
3-State |
Features |
Balanced outputs, Bus-hold, Over-voltage tolerant inputs, Very high speed (tpd 5-10ns) |
Rating |
Catalog |
Operating temperature range (°C) |
-40 to 85 |

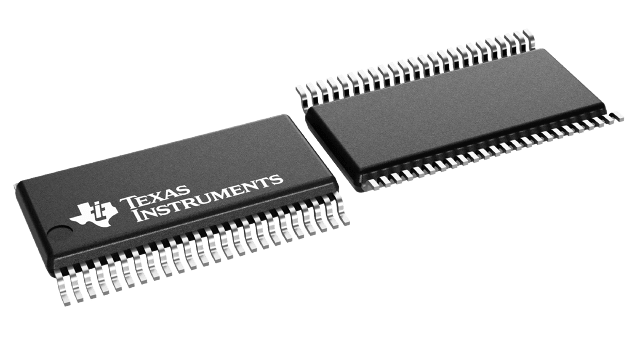

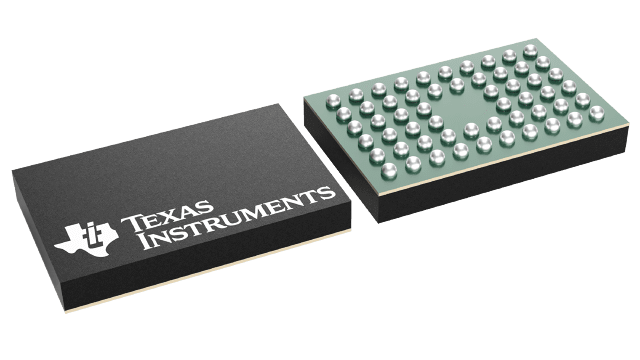

SSOP (DL)-48-164.358 mm² 15.88 x 10.35
Widebus is a trademark of Texas Instruments.
This 16-bit buffer/driver is designed for 1.65-V to 3.6-V VCC operation.
The SN74ALVCH16244 is designed specifically to improve the performance and density of 3-state memory address drivers, clock drivers, and bus-oriented receivers and transmitters.
The device can be used as four 4-bit buffers, two 8-bit buffers, or one 16-bit buffer. It provides true outputs and symmetrical active-low output-enable (OE) inputs.
To ensure the high-impedance state during power up or power down, OE should be tied to VCC through a pullup resistor; the minimum value of the resistor is determined by the current-sinking capability of the driver.
Active bus-hold circuitry holds unused or undriven inputs at a valid logic state. Use of pullup or pulldown resistors with the bus-hold circuitry is not recommended.
