ADS1204
  • ADS1204
  • ADS1204

ADS1204

ACTIVE

Four Delta-Sigma Modulators, 10MHz CLK, 0-5V Input, 16-Bit Resolution

Texas Instruments ADS1204 Product Info

1 April 2026 3

Parameters

Resolution (Bits)

16

Number of input channels

4

Interface type

Serial

Architecture

Delta-Sigma Modulator

Input type

Differential, Single-ended

Multichannel configuration

Simultaneous Sampling

Rating

Catalog

Reference mode

External, Internal

Input voltage range (max) (V)

5

Input voltage range (min) (V)

0

Features

Oscillator

Operating temperature range (°C)

-40 to 105

Power consumption (typ) (mW)

122

Analog supply voltage (min) (V)

4.5

Analog supply voltage (max) (V)

5.5

SNR (dB)

89

Digital supply (min) (V)

2.7

Digital supply (max) (V)

5.5

Package

VQFN (RHB)-32-25 mm² 5 x 5

Features

  • 16-bit resolution
  • 14-bit linearity
  • Resolution, speed trade-off:
    10-bit effective resolution with 10-µs signal delay (12-bit with 19 µs)
  • ±2.5-V input range at 2.5 V
  • Internal reference voltage: 2%
  • Gain error: 0.5%
  • Four independent delta-sigma modulators
  • Four input reference buffers
  • Onboard 20-MHz oscillator
  • Selectable internal or external clock
  • Operating temperature range:
    –40°C to +105°C
  • Package: VQFN-32 (5 mm × 5 mm)
  • 16-bit resolution
  • 14-bit linearity
  • Resolution, speed trade-off:
    10-bit effective resolution with 10-µs signal delay (12-bit with 19 µs)
  • ±2.5-V input range at 2.5 V
  • Internal reference voltage: 2%
  • Gain error: 0.5%
  • Four independent delta-sigma modulators
  • Four input reference buffers
  • Onboard 20-MHz oscillator
  • Selectable internal or external clock
  • Operating temperature range:
    –40°C to +105°C
  • Package: VQFN-32 (5 mm × 5 mm)

Description

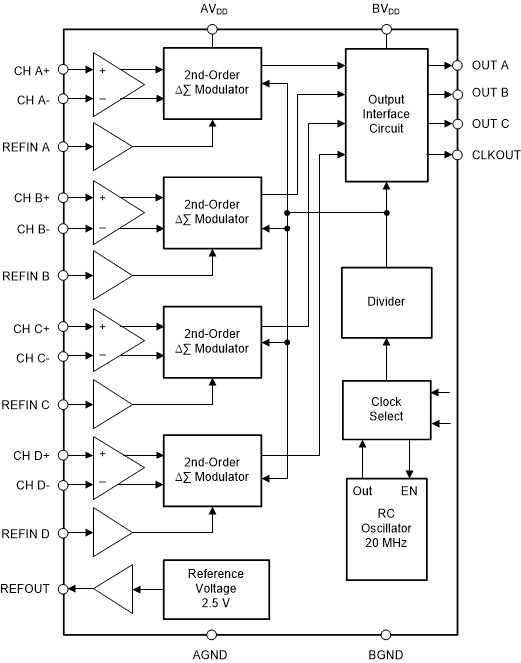

The ADS1204 is a four-channel, high-performance device, with four delta-sigma (ΔΣ) modulators with 100-dB dynamic range, operating from a single 5-V supply. The differential inputs are ideal for direct connection to transducers in an industrial environment. With the appropriate digital filter and modulator rate, the device can be used to achieve 16-bit analog-to-digital (A/D) conversion with no missing code. Effective resolution of 12 bits can be obtained with a digital filter data rate of 160 kHz at a modulator rate of 10 MHz. The ADS1204 is designed for use in medium- to high-resolution measurement applications including current measurements, smart transmitters, industrial process control, weight scales, chromatography, and portable instrumentation. It is available in a VQFN-32 (5×5) package.
