Rating |
Catalog |
Topology |
Boost |
Vin (max) (V) |
7 |
Vin (min) (V) |
2.2 |
Vout (max) (V) |
20 |
Vout (min) (V) |
1.24 |
Switch current limit (typ) (A) |
0.55 |
Features |
Enable, Nonsynchronous rectification |
Operating temperature range (°C) |
-40 to 125 |
Iq (typ) (A) |
0.000235 |
Duty cycle (max) (%) |
76 |
SOT-23 (DBV)-5-8.12 mm² 2.9 x 2.8
All trademarks are the property of their respective owners.

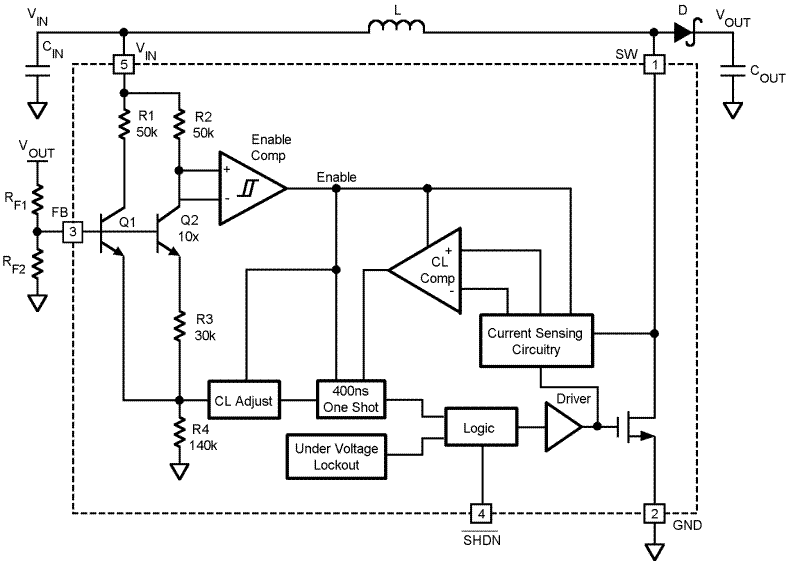

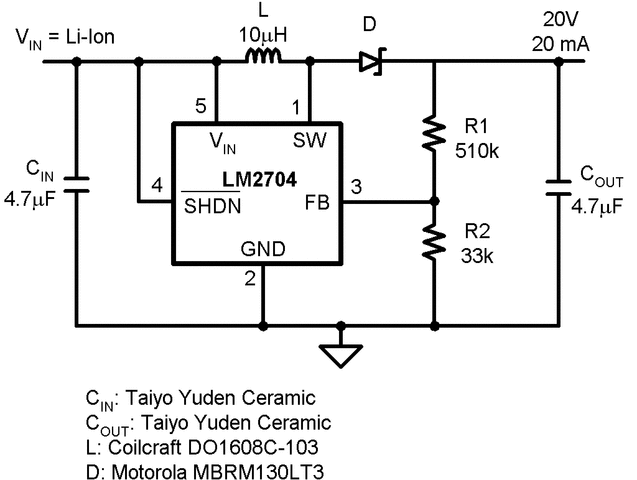

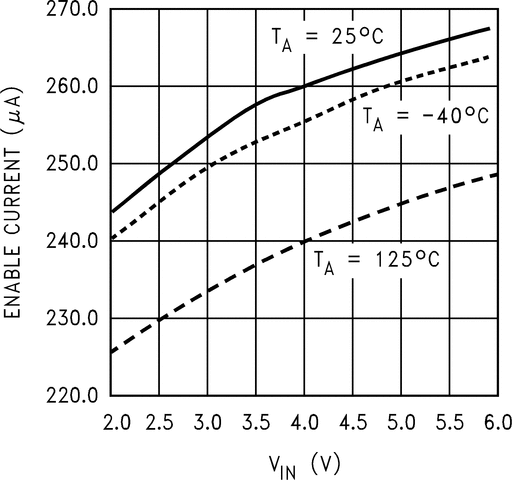

The LM2704 is a micropower step-up DC/DC in a small 5-lead SOT-23 package. A current limited, fixed off-time control scheme conserves operating current resulting in high efficiency over a wide range of load conditions. The 21V switch allows for output voltages as high as 20V. The low 400ns off-time permits the use of tiny, low profile inductors and capacitors to minimize footprint and cost in space-conscious portable applications. The LM2704 is ideal for LCD panels requiring low current and high efficiency as well as white LED applications for cellular phone back-lighting. The LM2704 can drive up to 8 white LEDs from a single Li‐Ion battery.
