0
ACTIVE
Rating |
Catalog |
Topology |
Buck |
Iout (max) (A) |
3 |
Vin (max) (V) |
6 |
Vin (min) (V) |
3 |
Vout (max) (V) |
2.5 |
Vout (min) (V) |
2.5 |
Features |
Enable, Power good, Synchronous Rectification |
Control mode |
Voltage mode |
Operating temperature range (°C) |
-40 to 125 |
Iq (typ) (A) |
0.0062 |
Duty cycle (max) (%) |
90 |

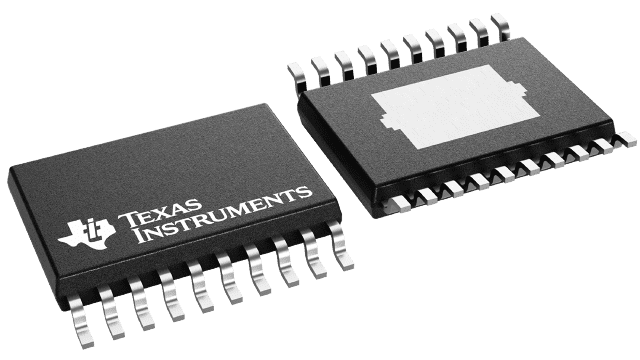

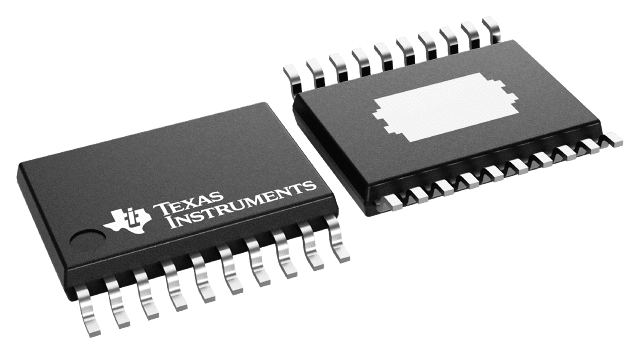

HTSSOP (PWP)-20-41.6 mm² 6.5 x 6.4

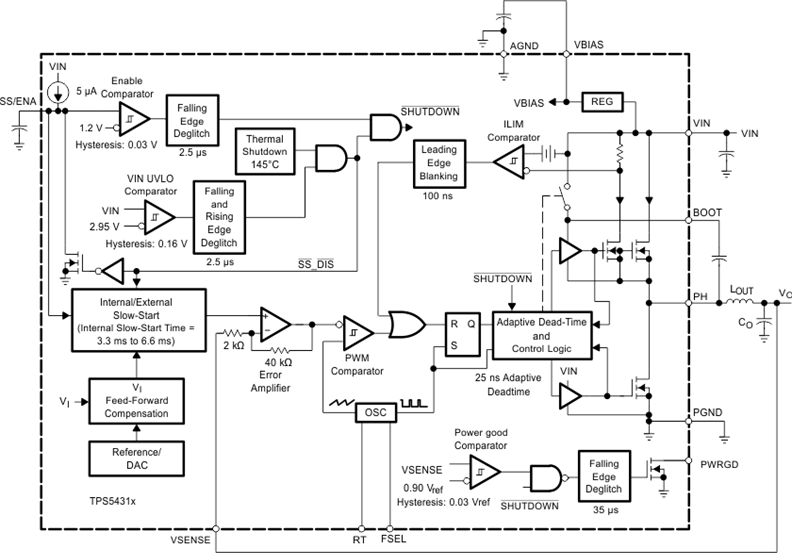

As members of the SWIFT™ family of DC - DC regulators, the TPS54311, TPS54312, TPS54313, TPS54314, TPS54315 and TPS54316 low-input-voltage high-outputcurrent synchronous-buck PWM converters integrate all required active components. Included on the substrate with the listed features are a true, high performance, voltage error amplifier that provides high performance under transient conditions; an undervoltage-lockout circuit to prevent start-up until the input voltage reaches 3 V; an internally and externally set slow-start circuit to limit in-rush currents; and a powergood output useful for processor/logic reset, fault signaling, and supply sequencing.
The TPS54311, TPS54312, TPS54313, TPS54314, TPS54315 and TPS54316 devices are available in a thermally enhanced 20-pin HTSSOP (PWP) PowerPAD™ package, which eliminates bulky heatsinks. TI provides evaluation modules and the SWIFT designer software tool to aid in quickly achieving high-performance power supply designs to meet aggressive equipment development cycles.
