ADC14155QML-SP
  • ADC14155QML-SP
  • ADC14155QML-SP
  • ADC14155QML-SP

ADC14155QML-SP

ACTIVE

Radiation-hardness-assured (RHA), QMLV, 100-krad, ceramic, 14-bit, single, 155-MSPS ADC

Texas Instruments ADC14155QML-SP Product Info

1 April 2026 2

Parameters

Sample rate (max) (Msps)

155

Resolution (Bits)

14

Number of input channels

1

Interface type

Parallel CMOS

Analog input BW (MHz)

1100

Features

High Performance

Rating

Space

Peak-to-peak input voltage range (V)

2

Power consumption (typ) (mW)

967

Architecture

Pipeline

SNR (dB)

70.1

ENOB (Bits)

11.3

SFDR (dB)

82.3

Operating temperature range (°C)

-55 to 125

Input buffer

No

Radiation, TID (typ) (krad)

100

Radiation, SEL (MeV·cm2/mg)

120

Package

CFP (NBA)-48-132.25 mm² 11.5 x 11.5

Features

  • 5962R0626201VXC
    • Total Ionizing Dose (TID) 100 krad(Si)
    • Single Event Latch-up 120 MeV-cm2/mg
      (See Radiation Reports)
  • 1.1-GHz Full-Power Bandwidth
  • Internal Sample-and-Hold Circuit
  • Low-Power Consumption
  • Internal Precision 1-V Reference
  • Single-Ended or Differential Clock Modes
  • Data Ready Output Clock
  • Clock Duty Cycle Stabilizer
  • Dual 3.3-V and 1.8-V Supply Operation (±10%)
  • Power-Down Mode
  • Offset Binary or 2’s Complement Output Data Format
  • 48-pin CFP Package (11.5-mm × 11.5-mm, 0.635-mm Pin-Pitch)
  • Key Specifications
    • Resolution 14 Bits
    • Conversion Rate 155 MSPS
    • SNR (fIN = 70 MHz) 70.1 dBFS (typ)
    • SFDR (fIN = 70 MHz) 82.3 dBFS (typ)
    • ENOB (fIN = 70 MHz) 11.3 Bits (typ)
    • Full-Power Bandwidth 1.1 GHz (typ)
    • Power Consumption 967 mW (typ)
  • 5962R0626201VXC
    • Total Ionizing Dose (TID) 100 krad(Si)
    • Single Event Latch-up 120 MeV-cm2/mg
      (See Radiation Reports)
  • 1.1-GHz Full-Power Bandwidth
  • Internal Sample-and-Hold Circuit
  • Low-Power Consumption
  • Internal Precision 1-V Reference
  • Single-Ended or Differential Clock Modes
  • Data Ready Output Clock
  • Clock Duty Cycle Stabilizer
  • Dual 3.3-V and 1.8-V Supply Operation (±10%)
  • Power-Down Mode
  • Offset Binary or 2’s Complement Output Data Format
  • 48-pin CFP Package (11.5-mm × 11.5-mm, 0.635-mm Pin-Pitch)
  • Key Specifications
    • Resolution 14 Bits
    • Conversion Rate 155 MSPS
    • SNR (fIN = 70 MHz) 70.1 dBFS (typ)
    • SFDR (fIN = 70 MHz) 82.3 dBFS (typ)
    • ENOB (fIN = 70 MHz) 11.3 Bits (typ)
    • Full-Power Bandwidth 1.1 GHz (typ)
    • Power Consumption 967 mW (typ)

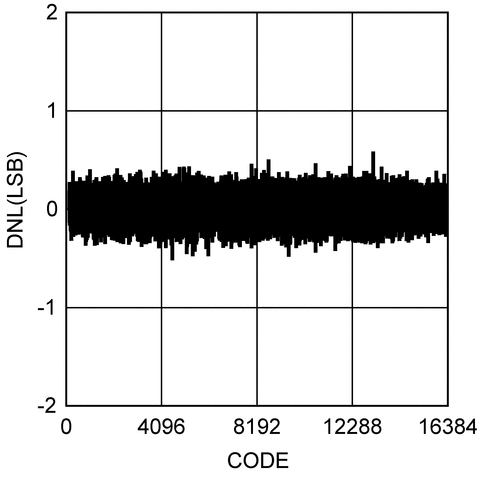

Description

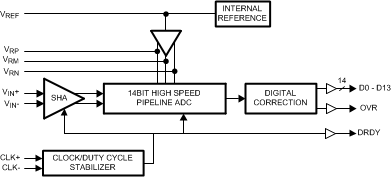

The ADC14155QML-SP is a high-performance CMOS analog-to-digital converter capable of converting analog input signals into 14-bit digital words at rates up to 155 MSPS. This converter uses a differential, pipelined architecture with digital error correction and an on-chip sample-and-hold circuit to minimize power consumption and the external component count, while providing excellent dynamic performance. A unique sample-and-hold stage yields a full-power bandwidth of 1.1 GHz. The ADC14155 operates from dual 3.3-V and 1.8-V power supplies and consumes 967 mW of power at 155 MSPS.

The separate 1.8-V supply for the digital output interface allows lower power operation with reduced noise. A power-down feature reduces the power consumption to 5 mW with the clock input disabled, while still allowing fast wake-up time to full operation. The differential inputs provide a full scale differential input swing equal to 2 times the reference voltage. A stable 1-V internal voltage reference is provided, or the ADC14155 can be operated with an external reference. The Clock mode (differential versus single-ended) and output data format (offset binary versus 2’s complement) are pin-selectable. A duty cycle stabilizer maintains performance over a wide range of clock duty cycles.

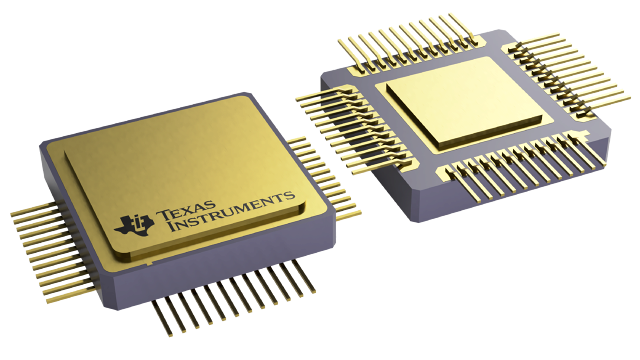

The ADC14155QML-SP is available in a 48-lead thermally enhanced multi-layer ceramic quad package and operates over the military temperature range of –55°C to +125°C.

The ADC14155QML-SP is a high-performance CMOS analog-to-digital converter capable of converting analog input signals into 14-bit digital words at rates up to 155 MSPS. This converter uses a differential, pipelined architecture with digital error correction and an on-chip sample-and-hold circuit to minimize power consumption and the external component count, while providing excellent dynamic performance. A unique sample-and-hold stage yields a full-power bandwidth of 1.1 GHz. The ADC14155 operates from dual 3.3-V and 1.8-V power supplies and consumes 967 mW of power at 155 MSPS.

The separate 1.8-V supply for the digital output interface allows lower power operation with reduced noise. A power-down feature reduces the power consumption to 5 mW with the clock input disabled, while still allowing fast wake-up time to full operation. The differential inputs provide a full scale differential input swing equal to 2 times the reference voltage. A stable 1-V internal voltage reference is provided, or the ADC14155 can be operated with an external reference. The Clock mode (differential versus single-ended) and output data format (offset binary versus 2’s complement) are pin-selectable. A duty cycle stabilizer maintains performance over a wide range of clock duty cycles.

The ADC14155QML-SP is available in a 48-lead thermally enhanced multi-layer ceramic quad package and operates over the military temperature range of –55°C to +125°C.
