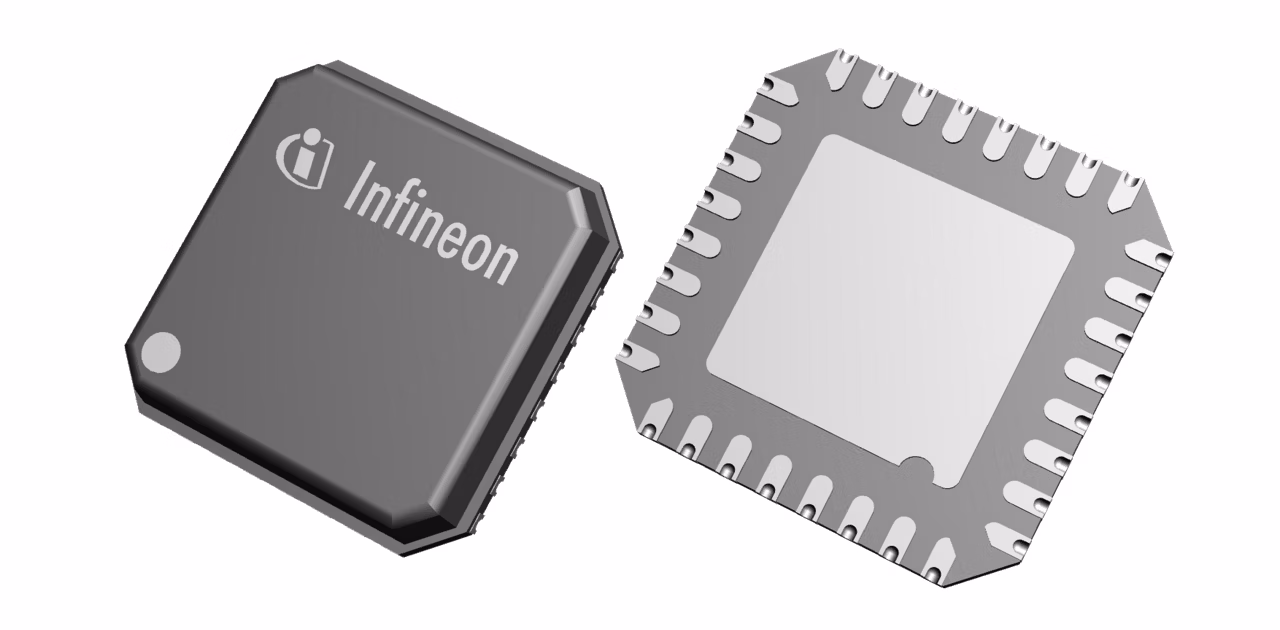

TLE92102QVW
  • TLE92102QVW

TLE92102QVW

Active and preferred

MOTIX™ TLE92102QVW is an advanced gate driver with SPI interface dedicated to control up to four N-channel MOSFETs. It includes two half-bridges for DC motor control, one integrated current sense amplifier (CSA) and is compliant to ISO 26262 (ASIL B). TLE92102 is ideal for 12 V and up to ASIL B rated safety motor drive applications such as seat control, window lift central door lock or body control module.

Infineon Technologies TLE92102QVW Product Info

16 April 2026 1

Parameters

Classification

ISO 26262-compliant (ASIL B)

Control Interface

PWM, 24 bits SPI

MCU

No

Planned to be available until at least

2039

Power Stage

No

Qualification

Automotive

Supply Voltage absolute max ratings max

40 V

Supply Voltage min

7 V

Supply Voltage max

36 V

Temperature range

-40 °C to 175 °C

Features

  • Drive up to 4 N-MOSFETs
  • Integrated current sense amp
  • Configurable Gate current sequencer
  • Current control output stages
  • Redundant switch off path
  • 7-36V supply
  • PWM input
  • Configurable failure reactions
  • Monitoring & diagnostics
  • ISO 26262 ASIL B
  • AEC Q100 grade 0
  • 5MHz SPI configuration

Description

  • Drives up to 2 half-bridges
  • Reduces BOM
  • Low system cost
  • Avoids EMC problems
  • Precise control of the MOSFET
  • Precise control of the motor
  • Redundant path in case of error
  • Reduced energy consumption
