T930N36TOF VT
  • T930N36TOF VT

T930N36TOF VT

Active and preferred

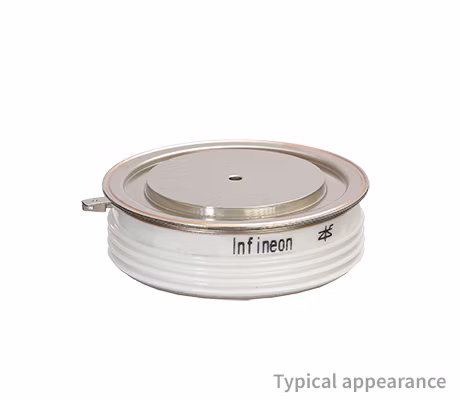

The T930N Phase Control Thyristor discs are assembled in high reliable, robust and hermetic sealed ceramic housings with a dia of 75mm and a height of 26mm.

Infineon Technologies T930N36TOF VT Product Info

16 April 2026 1

Parameters

Clamping force [kn] range

20 to 45

Configuration

Electrical Triggered Phase Control Thyristor

Housing

Disc dia 75mm height 26mm / Ceramic

ITAVM/TC [A/°C] (@180° el sin)

930/85

ITAVM

930 (180 ° el sin)

ITSM [A] (@10ms, Tvj max)

17500

ITSM

17500 A

rT [mΩ] (@Tvj max) max

0.43

RthJC [K/kW] (@180° el sin) max

21.5

tq [µs]

500

Tvj [°C] max

125

VDRM / VRRM [V]

3600

VDRM/ VRRM (V)

3600 V

VT/IT [V/kA] (@Tvj max)

2.70/3.6

VT0 [V] (@Tvj max) max

1

∫I2dt [A²s · 103] (@10ms, Tvj max)

1530

Apps

High-voltage direct current (HVDC)

Features

  • Full blocking capability 50/60 Hz
  • High DC blocking stability
  • High surge current capability
  • High turn-on di/dt capability
  • High dv/dt capability
