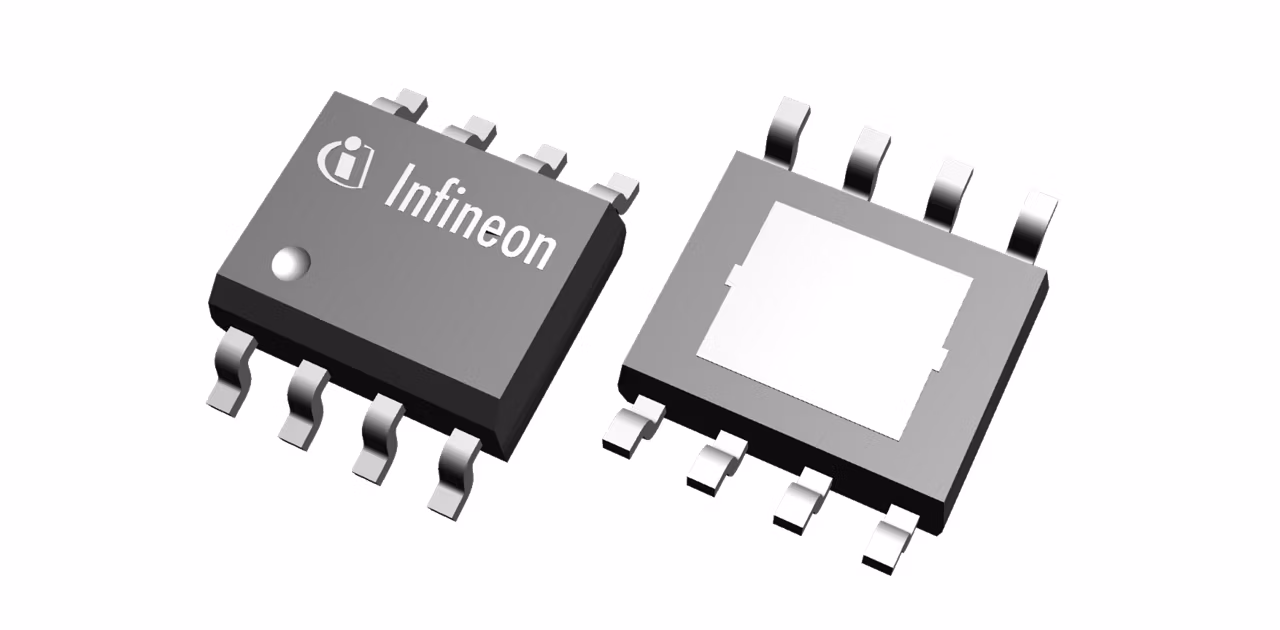

TLD5045EJ
  • TLD5045EJ

TLD5045EJ

Active and preferred

Device drives LEDs efficiently from higher voltage, regulates constant current for accuracy and lifespan. Integrated diode and transistor reduce external components and costs. Adjustable currents and frequency. Integrated PWM dimming enables LED dimming without a microcontroller. A pull-down transistor simulates current flow to prevent false open load detection. Ideal for decentralized light modules and avoiding BCM issues.

Infineon Technologies TLD5045EJ Product Info

16 April 2026 0

Parameters

Classification

--

Dimming

Analog and Digital

fSW range

50 kHz to 300 kHz

Inhibit

Yes

Iout max

700 mA

IQ max

700 mA

Iq

2 µA

Open Load Detection

Yes

Operating Temperature range

-40 °C to 150 °C

Planned to be available until at least

2038

PWM

Yes

Short Circuit Protection

Yes

Topology

DC-DC Buck

Type

Buck

VS range

5 V to 40 V

Apps

Automotive body electronics & power distribution

Features

  • Highly integrated BUCK DC-DC converter
  • Constant Current Generation
  • Wide Input Voltage Range from 5V to 40V
  • Peak Current Regulation
  • Ultra-low <2uA current in Sleep Mode
  • Integrated transistor with low Vsat
  • Integrated load current sense resistor
  • Integrated status pull down transistor
  • Overtemperature Protection
  • Adjustable switch freq. with external RC
  • External PWM Dimming Input
