IR2233J
  • IR2233J

IR2233J

Active and preferred

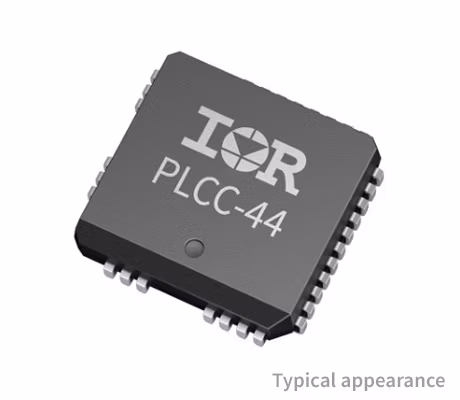

EiceDRIVER™ 1200 V three-phase gate driver IC with typical 0.25 A source and 0.5 A sink currents in 44 Lead PLCC package for IGBTs and MOSFETs . Also available in 28 Lead PDIP and 28 Lead SOICWB.

Infineon Technologies IR2233J Product Info

16 April 2026 0

Parameters

Channels

6

Configuration

Three Phase

Input Vcc range

10 V to 20 V

Isolation Type

Functional levelshift JI (Junction Isolated)

Output Current (Sink)

0.5 A

Output Current (Source)

0.25 A

Qualification

Industrial

Turn Off Propagation Delay

700 ns

Turn On Propagation Delay

750 ns

VBS UVLO (Off)

8.2 V

VBS UVLO (On)

8.6 V

VCC UVLO (Off)

8.2 V

VCC UVLO (On)

8.6 V

Voltage Class

1200 V

Apps

Multicopters and drones, Home appliances, Robotics, Motor control

Features

  • Floating channel for bootstrap op.
  • Fully operational to +1200 V
  • Operational to +600 V (IR2135)
  • Tolerant to neg. transient volt.
  • dV/dt immune
  • Gate drive supply: 10 V to 20 V DC
  • And up to 25 V for transient
  • Undervoltage lockout for all chan.
  • Over-current shut down
  • Independent 3 half-bridge drivers
  • Matched prop. delay for all chan.
  • 2.5 V logic compatible
