T430N14TOF
  • T430N14TOF

T430N14TOF

Active and preferred

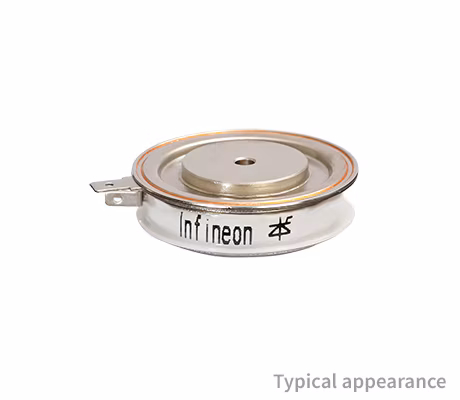

The T430N Phase Control Thyristor discs are assembled in high reliable, robust and hermetic sealed ceramic housings with a dia of 41mm and a height of 14mm.

Infineon Technologies T430N14TOF Product Info

16 April 2026 0

Parameters

Clamping force [kn] range

4 to 8

Configuration

Electrical Triggered Phase Control Thyristor

Housing

Disc dia 42mm height 14mm / Ceramic

ITAVM/TC [A/°C] (@180° el sin)

433/85

ITAVM

433 (180 ° el sin)

ITSM [A] (@10ms, Tvj max)

4600

ITSM

4600 A

rT [mΩ] (@Tvj max) max

0.9

RthJC [K/kW] (@180° el sin) max

51

tq [µs]

250

Tvj [°C] max

125

VDRM / VRRM [V]

1400

VDRM/ VRRM (V)

1400 V

VT/IT [V/kA] (@Tvj max)

2.07/1.2

VT0 [V] (@Tvj max) max

0.85

∫I2dt [A²s · 103] (@10ms, Tvj max)

106

Features

  • Full blocking capability 50/60 Hz
  • High DC blocking stability
  • High surge current capability
  • High turn-on di/dt capability
  • High dv/dt capability
