T830N16TOF
  • T830N16TOF

T830N16TOF

Active and preferred

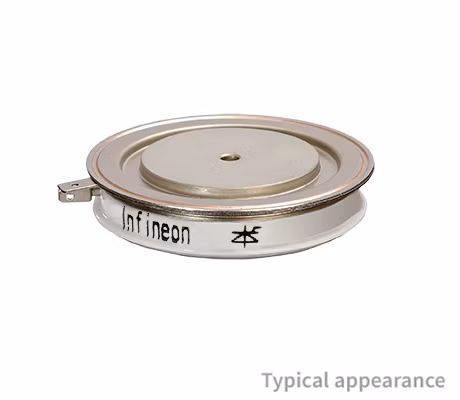

The T830N Phase Control Thyristor discs are assembled in high reliable, robust and hermetic sealed ceramic housings with a dia of 58mm and a height of 14mm.

Infineon Technologies T830N16TOF Product Info

16 April 2026 0

Parameters

Clamping force [kn] range

9 to 18

Configuration

Electrical Triggered Phase Control Thyristor

Housing

Disc dia 58mm height 14mm / Ceramic

ITAVM/TC [A/°C] (@180° el sin)

844/85

ITAVM

826 (180 ° el sin)

ITSM [A] (@10ms, Tvj max)

12500

ITSM

12500 A

rT [mΩ] (@Tvj max) max

0.3

RthJC [K/kW] (@180° el sin) max

30

tq [µs]

250

Tvj [°C] max

125

VDRM / VRRM [V]

1600

VDRM/ VRRM (V)

1600 V

VT/IT [V/kA] (@Tvj max)

1.94/3.0

VT0 [V] (@Tvj max) max

0.85

∫I2dt [A²s · 103] (@10ms, Tvj max)

781

Apps

Motor control, Power conversion

Features

  • Full blocking capability 50/60 Hz
  • High DC blocking stability
  • High surge current capability
  • High turn-on di/dt capability
  • High dv/dt capability
