FF450R08A03P2
  • FF450R08A03P2

FF450R08A03P2

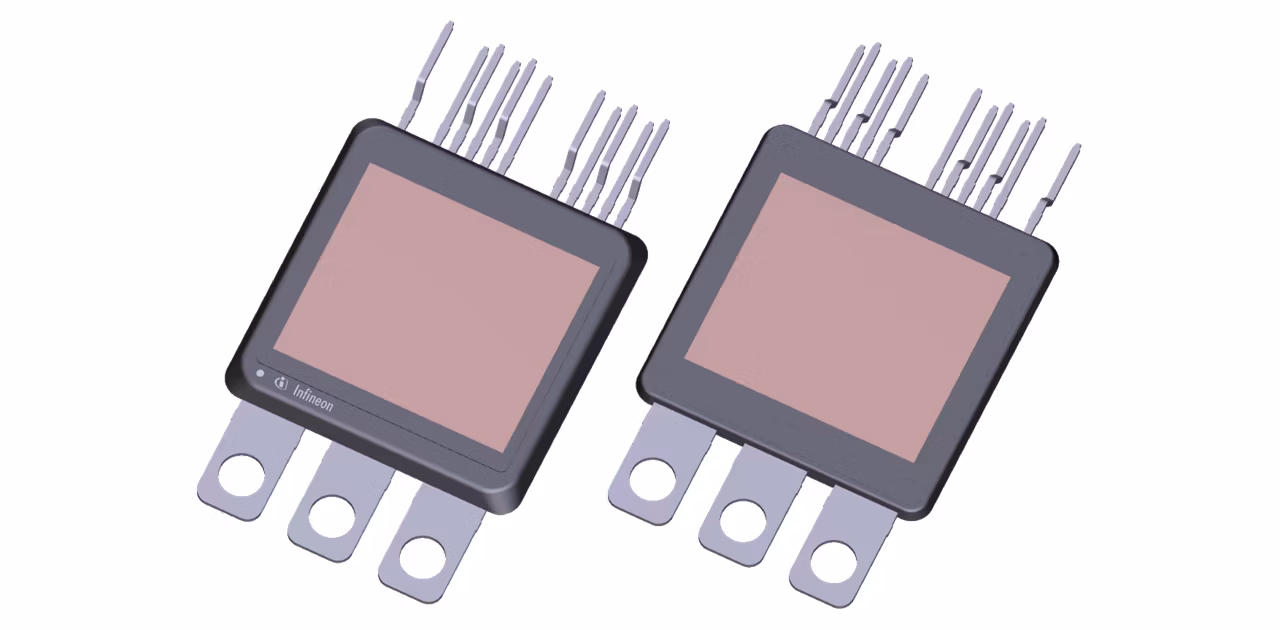

The HybridPACKTM DSC S2 is a very compact half-bridge module targeting Hybrid- and Electric Vehicle applications . The module is based on Infineon’s long-term experience developing IGBT power modules and implements the EDT2 IGBT generation. The innovative and small package is designed for Double Sided Cooling (DSC) with superior thermal performance and enables highest power density. It targets main inverters with power up to 75 kW.

Infineon Technologies FF450R08A03P2 Product Info

16 April 2026 0

Parameters

Applications

Hybrid Electric Vehicles, Drives, CAV, eMobility

Configuration

Dual, Half bridge

Cooling Concept

Double-sided cooling

Dimensions (length)

71.5 mm

Dimensions (width)

42 mm

Features

Double Side Cooled

Housing

HybridPACK™ DSC

IC(nom) / IF(nom)

450 A

IC max

900 A

Qualification

Automotive

Technology

IGBT EDT2

VCE(sat) (Tvj=25°C typ)

1.2 V

VCES (Tvj=25°C typ)

750 V

VF (Tvj=25°C typ)

1.55 V

Voltage Class max

750 V

Apps

EV traction inverter, EV charging

Features

  • On-chip Current Sensor
  • On-chip Temperature Sensor
  • Low Inductive Design
  • Blocking voltage 750V
  • Low Switching Losses
  • Short-time extended Op Tvj op = 175°C
  • Full automotive qual according to AQG324

Description

  • Superior thermal performance
  • Enables high inverter efficiency
