BGA8U1BN6
  • BGA8U1BN6

BGA8U1BN6

The BGA8U1BN6 is a front-end low noise amplifier for LTE which covers a wide frequency range from 4.0 GHz to 6.0 GHz. The LNA provides 13.7 dB gain and 1.6 dB noise figure at a current consumption of 4.5mA. In bypass mode the LNA provides an insertion loss of 7.5 dB.The BGA8U1BN6 is based upon Infineon Technologies B7HF Silicon Germanium technology. It operates from 1.6 V to 3.1 V supply voltage. The device features a multi-state control (OFF-, bypass- and high gain-Mode).

Infineon Technologies BGA8U1BN6 Product Info

16 April 2026 0

Parameters

Frequency

4000 - 6000 MHz

Gain

13.7 dB

I

4.5 mA

IIP3

-10 dBm

NF

1.6 dB

P-1dB (in)

-18 dBm

VCC operating range

1.6 V to 3.1 V

Apps

Mobile device and smartphone solutions

Features

  • Insertion power gain: 13.7 dB
  • Insertion Loss in bypass mode: 7.5 dB
  • Low noise figure: 1.6 dB
  • Low current consumption: 4.5 mA
  • Operating frequencies: 4.0 - 6.0 GHz
  • Multi-state control: OFF-, bypass- and high gain-Mode
  • Supply voltage: 1.6 V to 3.1 V

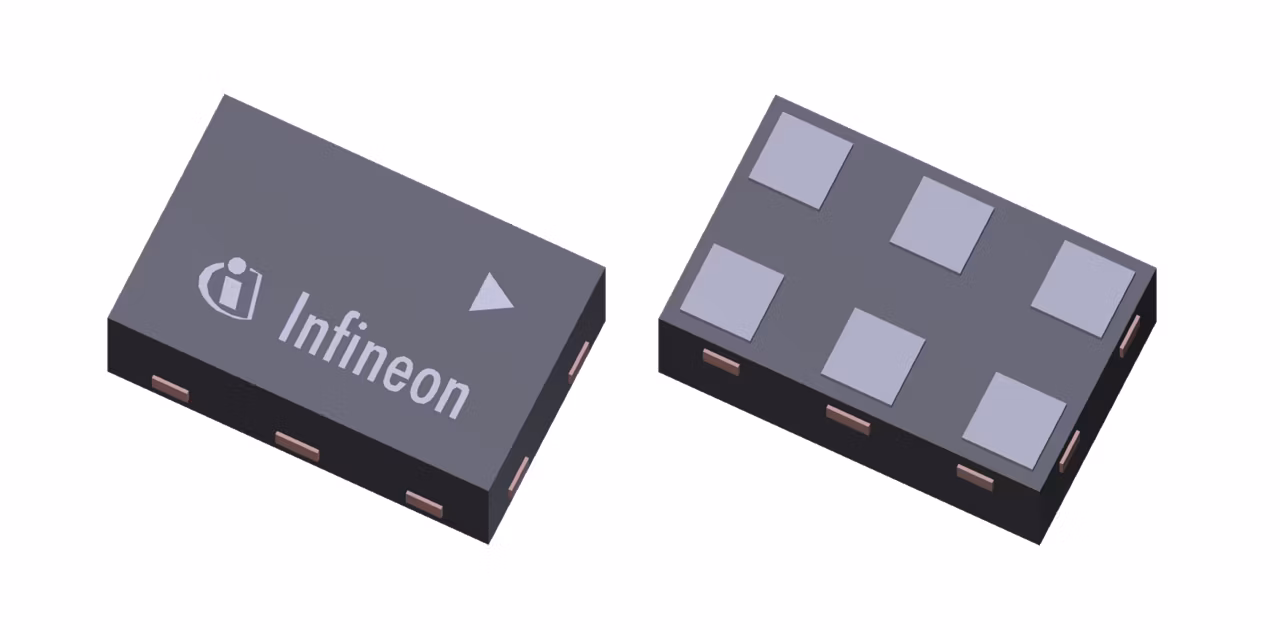

  • Ultra small TSNP-6-2 leadless package (footprint: 0.7 x 1.1 mm2)
  • B9HF Silicon Germanium technology
  • RF input and RF output internally matched to 50 Ohm
  • No external SMD components necessary
  • 2kV HBM ESD protection (including AI-pin)
  • Pb-free (RoHS compliant) package
