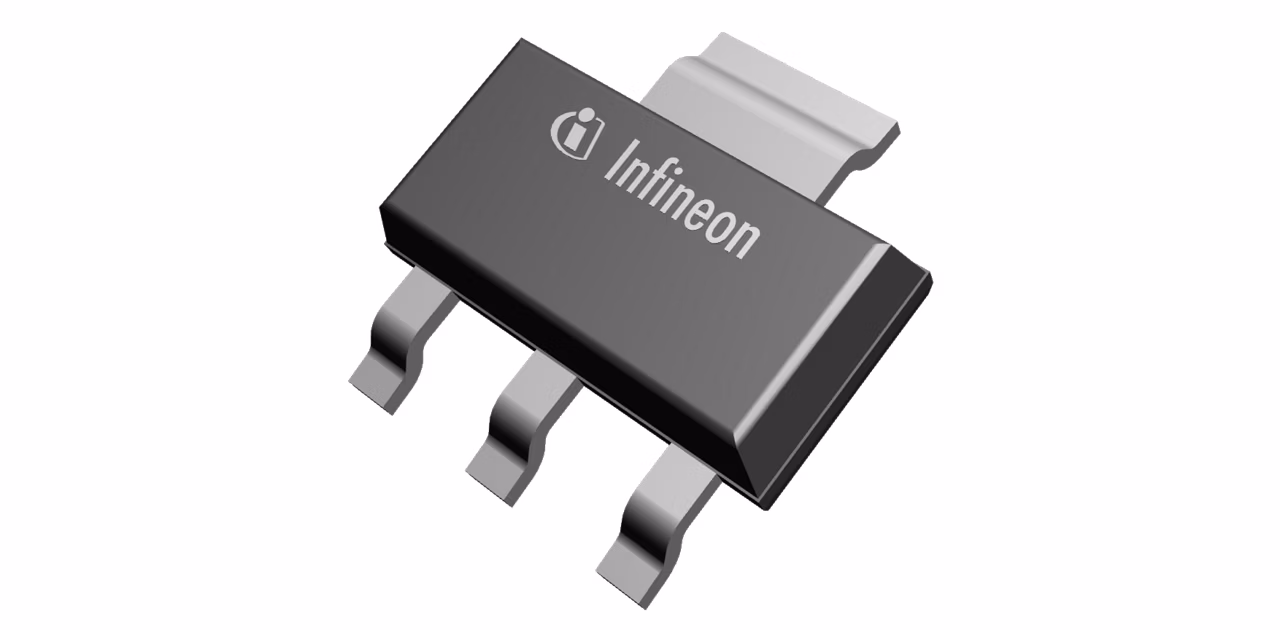

IRLL2705
  • IRLL2705

IRLL2705

Active

The IR MOSFET family of power MOSFETs utilizes proven silicon processes offering designers a wide portfolio of devices to support various applications such as DC motors, inverters, SMPS, lighting, load switches as well as battery powered applications.The devices are available in a variety of surface mount and through-hole packages with industry standard footprints for ease of design.

Infineon Technologies IRLL2705 Product Info

16 April 2026 0

Parameters

Budgetary Price €/1k

0.22

ID (@25°C) max

5.2 A

Moisture Sensitivity Level

1

Mounting

SMD

Operating Temperature range

-55 °C to 150 °C

Package

SOT-223

Polarity

N

Ptot (@ TA=25°C) max

2.1 W

Qgd

9.7 nC

QG (typ @10V)

32 nC

RDS (on) (@4.5V) max

65 mΩ

RDS (on) (@10V) max

40 mΩ

RthJA max

60 K/W

Special Features

Logic Level, Small Power

Tj max

150 °C

VDS max

55 V

VGS(th) range

1 V to 2 V

VGS(th)

1.5 V

VGS max

16 V

Apps

Medium voltage IBC (48 V), Fuel-cell control unit (FCCU)

Features

  • Planar cell structure for wide SOA
  • Optimized for broadest availability
  • Product qualification according to JEDEC
  • Silicon optimized for applications
  • Industry standard surface mount package

Description

  • Increased ruggedness
  • Wide availability at distribution
  • Industry standard qualification level
  • High performance, low-frequency
  • Drop-in replacement with standard pinout
