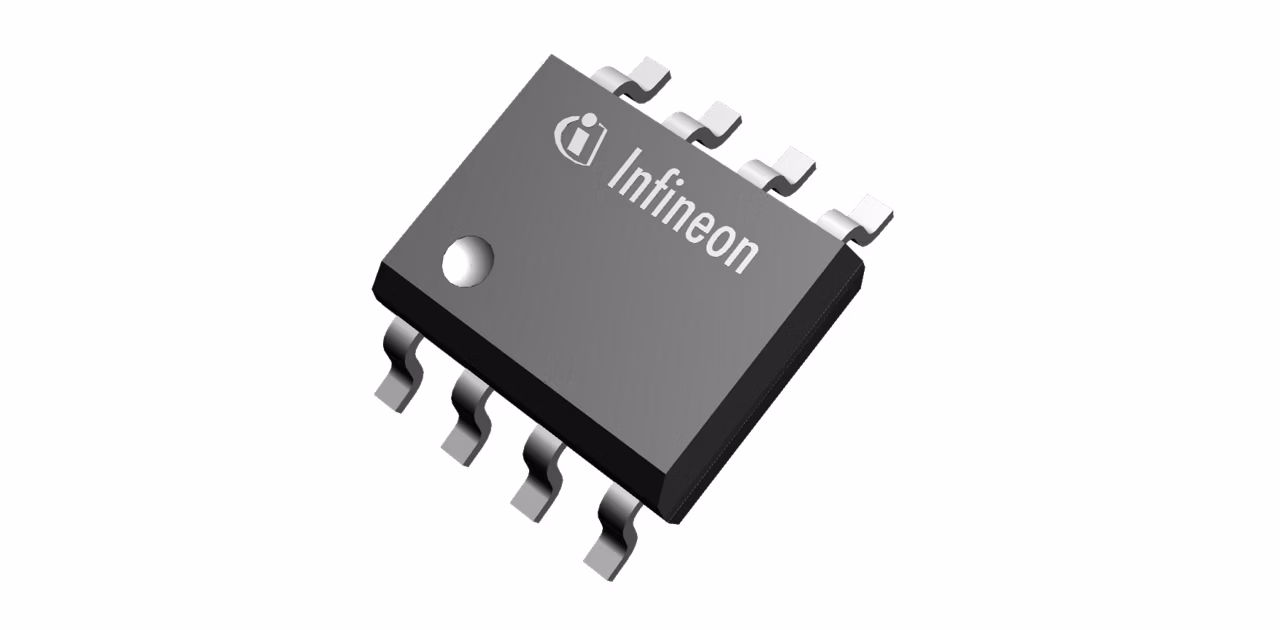

TLE5501 E0001
  • TLE5501 E0001

TLE5501 E0001

Active and preferred

TLE5501 E0001 analog TMR angle sensor for highly accurate position detection. TMR technology offers high sensing sensitivity with a high output voltage so no internal amplifier – thus the sensor can be connected directly to the microcontroller without any further amplification. TMR technology shows a very low temperature drift reducing external calibration and compensation efforts, well known for its low current consumption. We offer TLE5501 E0001(automotive qualified) or TLE5501 E0002 (automotive ASIL).

Infineon Technologies TLE5501 E0001 Product Info

16 April 2026 0

Parameters

Classification

QM

Interfaces

Analog

ISO 26262

compliant

Magnetic field range

20 mT to 100 mT

Package

SMD

Planned to be available until at least

2034

Supply Voltage range

-0.5 V to 6.5 V

Supply Voltage ((V))

-0.5-6.5

Technology

TMR

Temperature range

-40 °C to 150 °C

Apps

Windshield wiper system, Chassis control & safety, Electric power steering (EPS), General purpose motor drive

Features

  • TMR principle
  • Discrete bridge with differential sine
  • Supply current: ~2 mA
  • Magnetic field range (20 mT to 100 mT)
  • Typ. angle error ~ 1.0 °
  • Highly accurate position detection
  • 2 independent dual channel sensors
