IRS44273L
  • IRS44273L

IRS44273L

Active and preferred

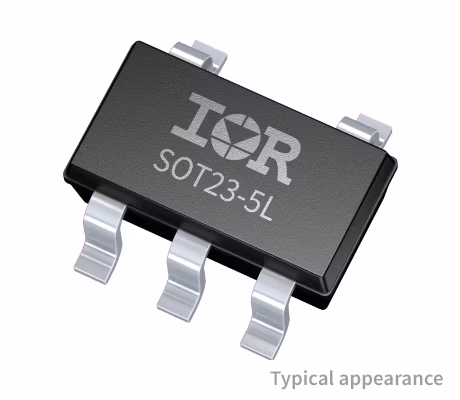

EiceDRIVER™ 25 V single-channel, low-side gate driver IC with typical 1.5 A source and 1.5 A sink currents in 5-lead SOT23 package for MOSFETs and IGBTs. The proprietary latch immune CMOS technologies enable ruggedized monolithic construction. The logic inputs are compatible with standard CMOS or LSTTL output. The output drivers feature a current buffer stage.

Infineon Technologies IRS44273L Product Info

16 April 2026 0

Parameters

Channels

1

Configuration

Low-side

Input Vcc min

6 V

Isolation Type

Non-isolated

Output Current (Sink)

1.5 A

Output Current (Source)

1.5 A

Qualification

Industrial

Turn Off Propagation Delay

50 ns

Turn On Propagation Delay

50 ns

VBS UVLO (On)

11 V

VCC UVLO (Off)

9.2 V

VCC UVLO (On)

10.2 V

Voltage Class

25 V

Apps

Light electric vehicle solutions, Refrigerators and freezers, Washing and drying, Industrial motor drives and controls, Commercial HVAC system, Residential air conditioning

Features

  • Supply volt. rage with 25 V Vccmax
  • Under voltage lockout for IGBTs
  • Dual gate drive OUT pins
  • CMOS Schmitt-triggered inputs
  • 3.3 V logic compatible
  • Output in phase with input
