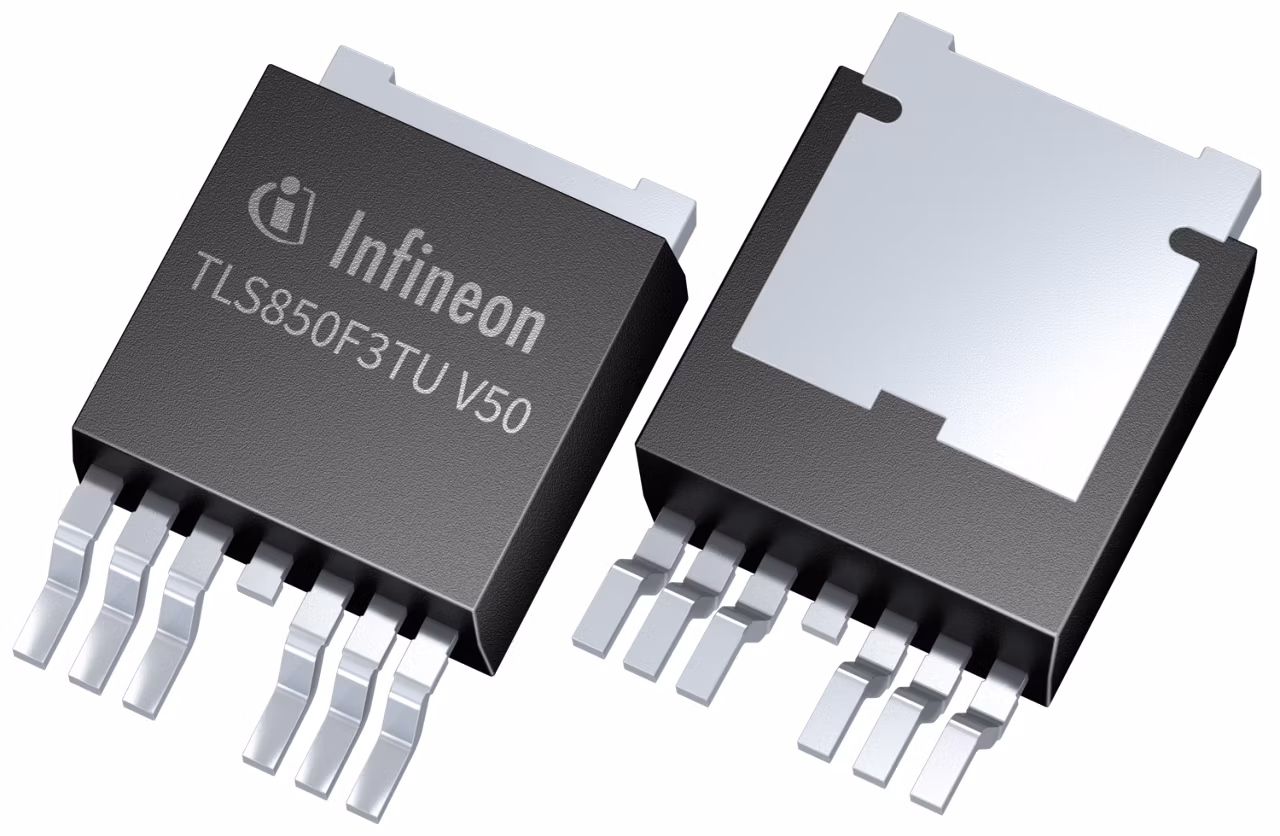

TLS850F3TUV50
  • TLS850F3TUV50

TLS850F3TUV50

Active and preferred

The TLS850F3TUV50 regulator is ideal for automotive and battery-connected supply systems, with an input voltage range of 3-42 V and a low 26 µA quiescent current. It provides ±2% output voltage accuracy, 500 mA maximum output current, and features such as reset function, integrated watchdog circuit, and internal protection against failures like overcurrent and overtemperature, ensuring reliable and safe operation.

Infineon Technologies TLS850F3TUV50 Product Info

16 April 2026 0

Parameters

Accuracy

2 %

Base Product

TLS850Fxxx, TLS8xxF3

Dropout Voltage

300 mV

Early Warning

No

Enable (=Inhibit)

No

Family

OPTIREG™ linear High Performance

Hold

No

Operating Temperature range

-40 °C to 150 °C

Operating Voltage range

3 V to 45 V

Output Current max

500 mA

Output Voltage Type

5.0V

Over Voltage Protection

No

Planned to be available until at least

2038

Power Fail

No

Power Good

No

Qualification

Automotive

Quiescent Current

26 µA

Regulator Type

High Performance

Reset

Yes

Status Output

No

Watchdog

Yes

Apps

Automotive body electronics & power distribution, Electric power steering (EPS), EV traction inverter, On-board charging (OBC)

Features

  • O/P 5 V ±2% % current capability 500 mA
  • Input voltage range from 3 V to 42 V
  • Stable with 1 µF ceramic O/P capacitor
  • current consumption: typically 26 µA
  • Very low V: typically 100 mV at 100 mA
  • Watchdog inhibit
  • Separate outputs for reset and watchdog
  • O/P current limitation&Overtemp shutdown

Description

  • Lower i/p caps reduced filtering costs.
  • PCB space and cost savings
  • Power saving for battery
