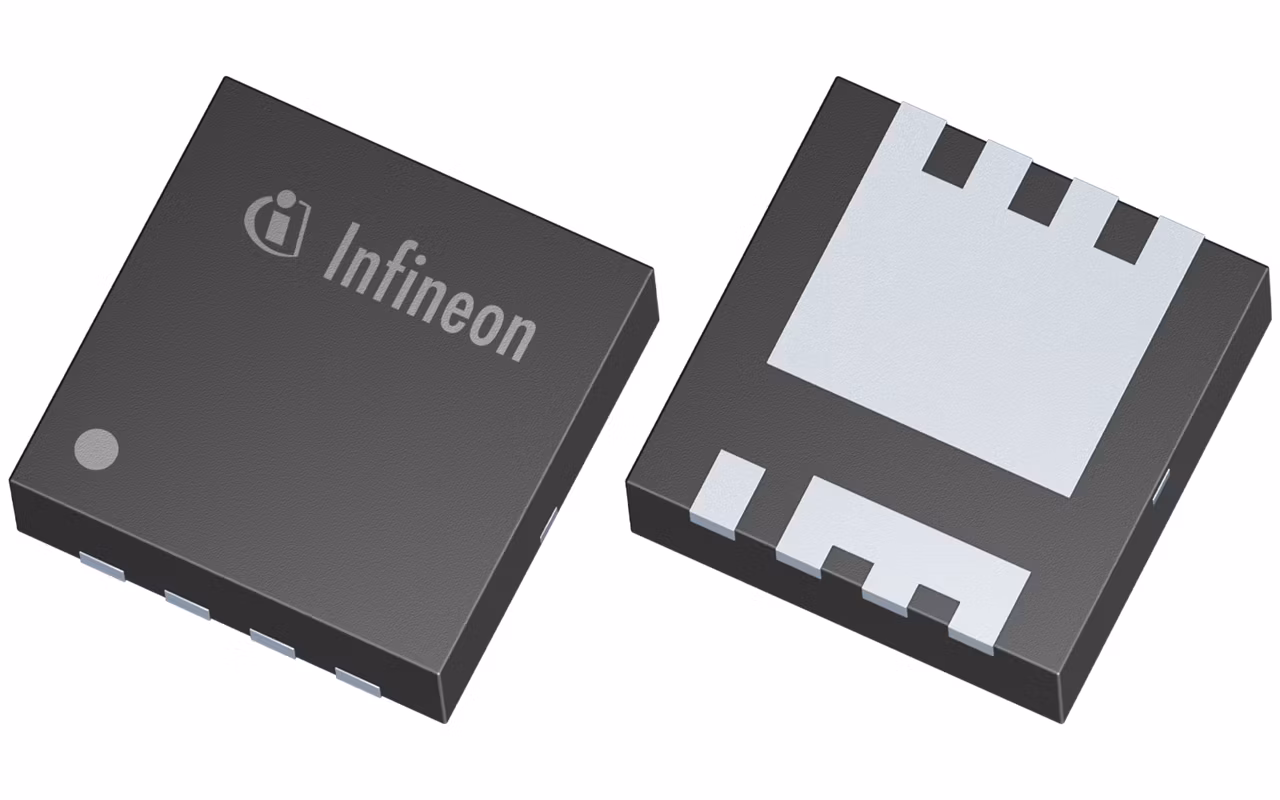

BSZ013NE2LS5I
  • BSZ013NE2LS5I

BSZ013NE2LS5I

Active and preferred

With the OptiMOS™ 5 25V and 30V product family, Infineon offers benchmark solutions by enabling highest power density and energy efficiency, both in standby and full operation.

Infineon Technologies BSZ013NE2LS5I Product Info

16 April 2026 0

Parameters

Budgetary Price €/1k

0.62

Ciss

2500 pF

Coss

1200 pF

ID (@25°C) max

186 A

IDpuls max

744 A

Mounting

SMD

Operating Temperature range

-55 °C to 150 °C

Package

PQFN 3.3 x 3.3

Pin Count

8 Pins

Polarity

N

Ptot max

69 W

QG (typ @4.5V)

17 nC

QG (typ @10V)

37 nC

RDS (on) (@4.5V LL) max

1.7 mΩ

RDS (on) (@4.5V) max

1.7 mΩ

RDS (on) (@10V) max

1.3 mΩ

RthJA max

60 K/W

RthJC max

1.8 K/W

Rth

1.8 K/W

Special Features

Logic Level, Monolithically Integrated Schottky-like Diode

VDS max

25 V

VGS(th) range

1.2 V to 2 V

VGS(th)

1.78 V

Apps

Medium voltage IBC (48 V), Telecommunications infrastructure, Home appliances

Features

  • Best-in-class on-state resistance
  • Benchmark switching performance
  • RoHS compliant and halogen free
  • Optimized EMI behavior

Description

  • Highest efficiency
  • Highest power density with PQFN 3.3x3.3
  • Reduction of overall system costs
  • Operation at high-switching frequency
