BSG0812ND
  • BSG0812ND

BSG0812ND

Active and preferred

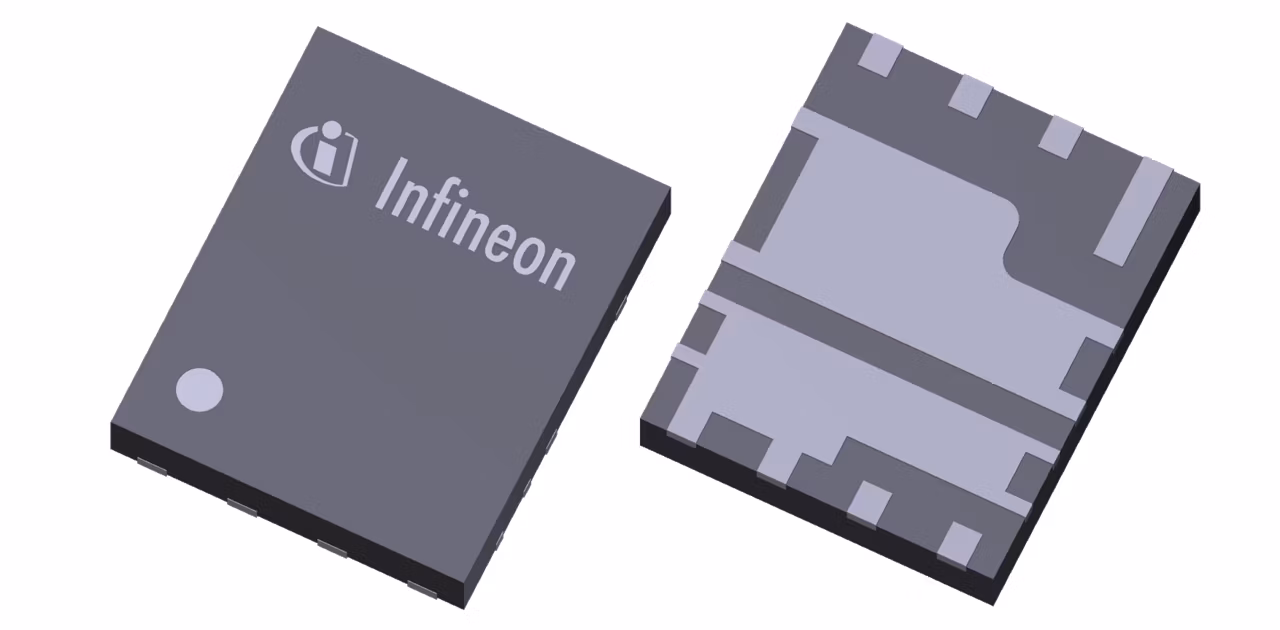

OptiMOS™ 5 Power Block is a leadless SMD package in a 5x6 mm² package, including a low-side and a high-side MOSFET in a synchronous buck converter configuration. By replacing two separate discrete packages, such as SO8 or SuperSO8, with the Power Block, customers can shrink their designs up to 85%. Standardizing power packages benefits the customer, as the number of different package outlines available in the market place is minimized.

Infineon Technologies BSG0812ND Product Info

16 April 2026 10

Parameters

Budgetary Price €/1k

0.63

ID (@25°C) max

18 A, 37 A

Operating Temperature range

-55 °C to 150 °C

Package

Power Block 5x6

Polarity

N+N

QG (typ @4.5V)

5.6 nC, 20 nC

RDS (on) (@10V) max

3.5 mΩ, 0.9 mΩ

RDS (on) (@4.5V) max

4.6 mΩ, 1.3 mΩ

Special Features

Logic Level

VDS max

25 V, 25 V

VGS(th) range

1.2 V to 2 V

VGS(th)

1.6 V

Features

  • 50 A max average load current
  • Source-Down for better PCB cooling
  • Internally connected low & high side
  • Lowest loop inductance
  • High side Kelvin connection

Description

  • Compact & simple layout for a DC-DC
  • Optimized layout
  • Best thermal performance
