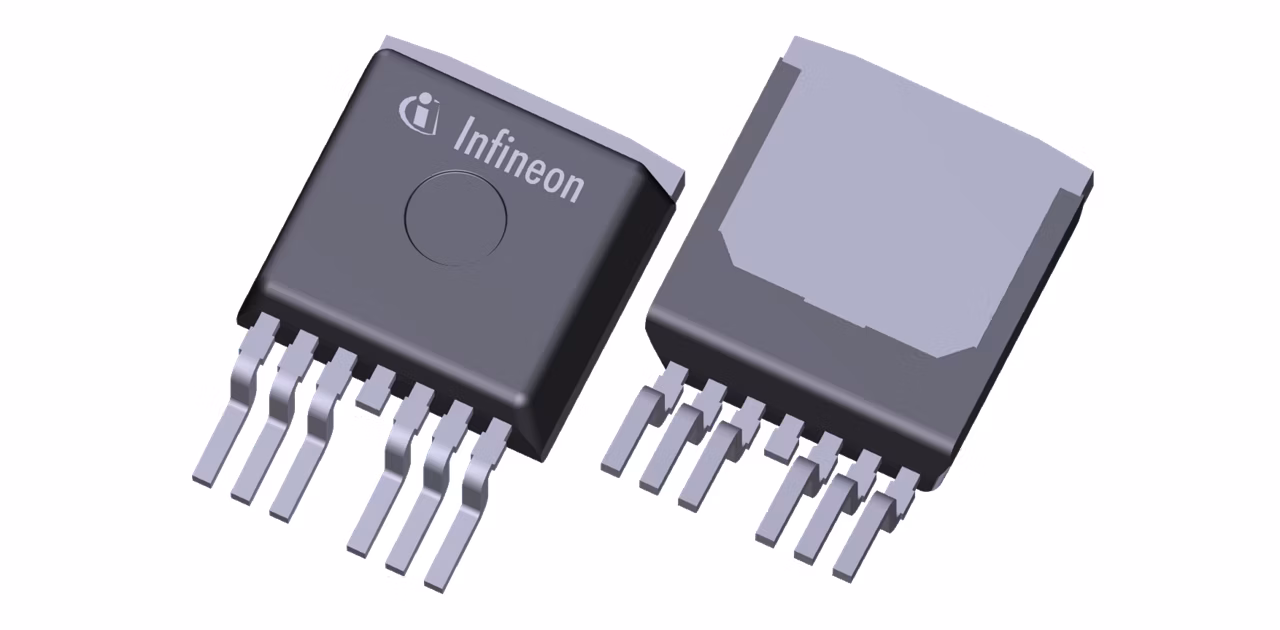

IPB011N04L G
  • IPB011N04L G

IPB011N04L G

OptiMOS™ 40V is a perfect choice for synchronous rectification in switched mode power supplies (SMPS) such as those found in servers and desktops. In addition these devices can be used for a broad range of industrial applications including motor control and fast switching DC-DC converter.

Infineon Technologies IPB011N04L G Product Info

16 April 2026 0

Parameters

Budgetary Price €/1k

1.05

Ciss

22000 pF

Coss

4100 pF

ID (@25°C) max

180 A

IDpuls max

1260 A

Operating Temperature range

-55 °C to 175 °C

Package

D2PAK 7pin (TO-263 7pin)

Polarity

N

Ptot max

250 W

QG (typ @10V)

260 nC

QG (typ @4.5V)

125 nC

RDS (on) (@10V) max

1.1 mΩ

RDS (on) (@4.5V) max

1.4 mΩ

RDS (on) (@4.5V LL) max

1.4 mΩ

RthJC max

0.6 K/W

Rth

0.6 K/W

Special Features

Logic Level, Wide SOA

VDS max

40 V

VGS(th) range

1.2 V to 2 V

VGS(th)

1.7 V

Features

  • Charge x RDS(on)product (FOM)
  • Low on-resistance R DS(on)
  • Ideal for fast switching applictions
  • RoHS compliant - halogen free
  • MSL1 rated

Description

  • Highest system efficiency
  • Less paralleling required
  • Increased power density
  • System cost reduction
  • Very low voltage overshoot
