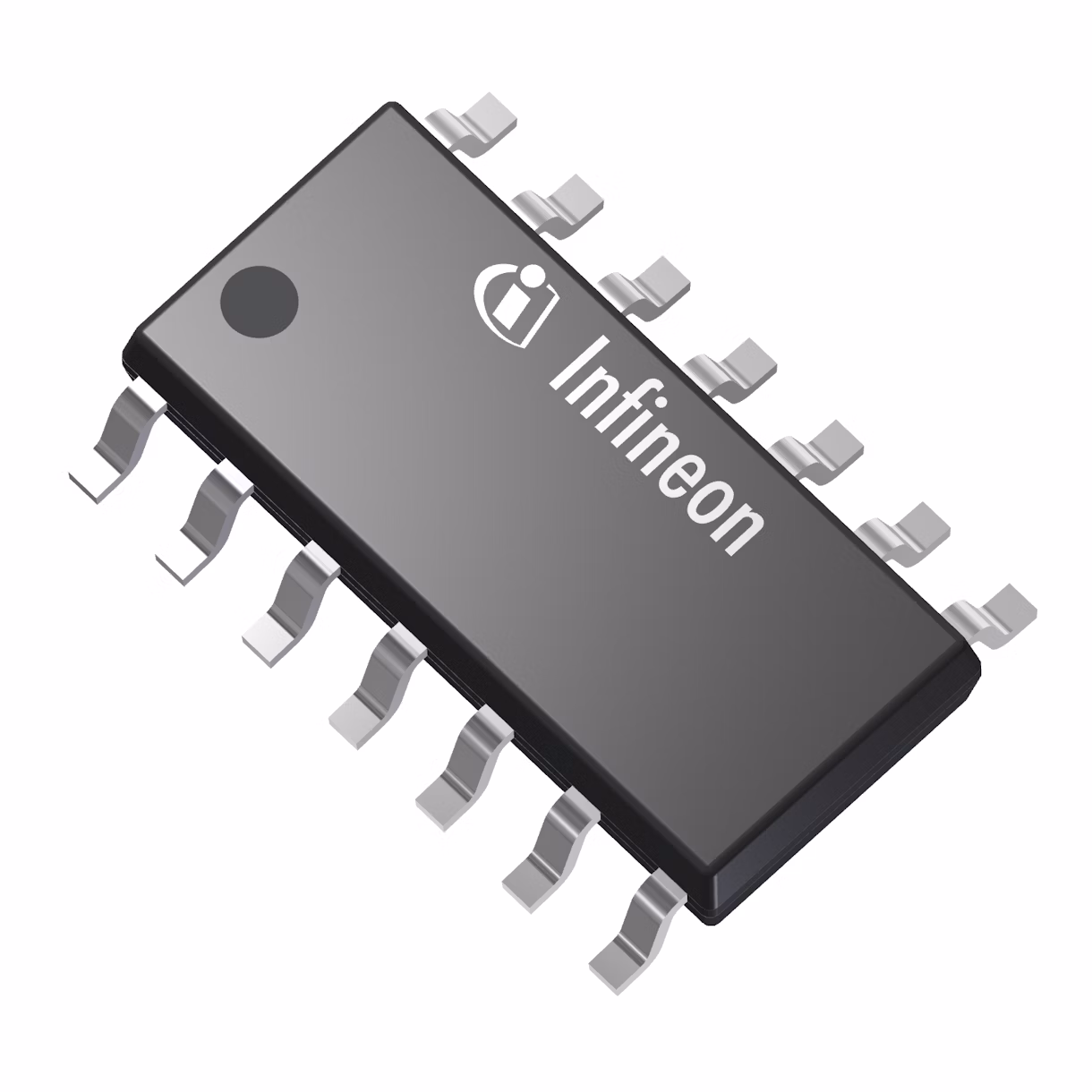

TLE4207G
  • TLE4207G

TLE4207G

Active and preferred

The Infineon DOPL technology powers the built-in high voltage part. The actuator (DC motor) connects directly to the half-bridges. Modes: forward, reverse, brake, high impedance. The power PG-DSO-14-22 package saves space and costs. Features include diagnosis, voltage lockout, short-circuit protection, over-temperature protection, low standby current. Ideal for automotive and industrial applications.

Infineon Technologies TLE4207G Product Info

16 April 2026 10

Parameters

Classification

QM, QM

MCU

No

Over current detection min

0.8 A

Planned to be available until at least

2038, 2038

Power Stage

Yes

Qualification

Automotive

Supply Voltage absolute max ratings

18 V

Apps

Automotive body control module (BCM)

Features

  • Delivers up to 0.8 A continuous
  • Optimized for DC motor management
  • Very low current consumption
  • Low saturation voltage
  • Output protected against short circuit
  • Error flag diagnosis
  • Undervoltage lockout
  • CMOS/TTL compatible i/ps with hysteresis
  • No crossover current
  • Internal clamp diodes
  • Overtemperature protection

Description

  • Easy to use
  • Proven technology
