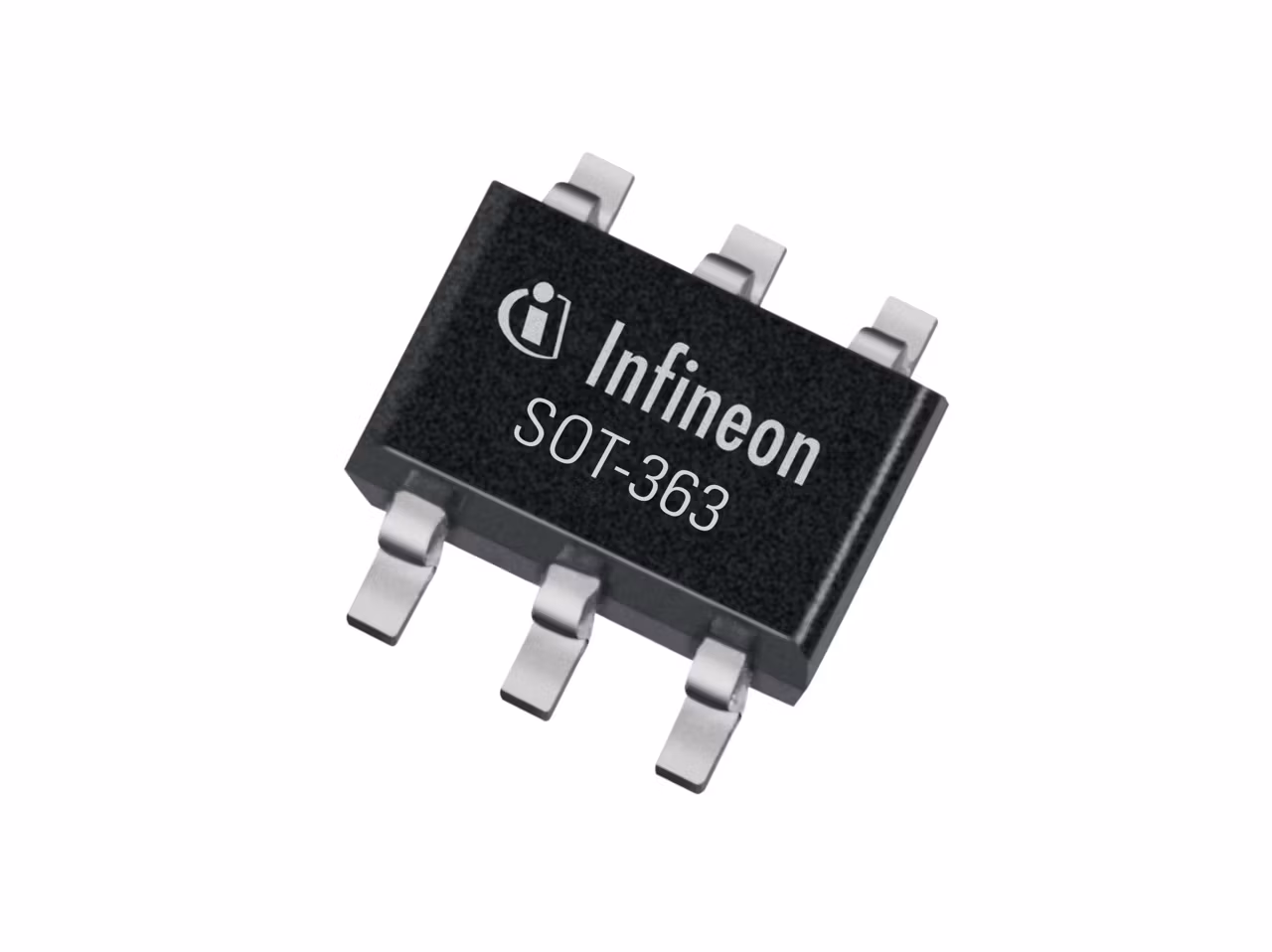

BSD223P
  • BSD223P

BSD223P

Active and preferred

Infineon’s highly innovative OptiMOS™ families include p-channel power MOSFETs. These products consistently meet the highest quality and performance demands in key specifications for power system design such as on-state resistance and figure of merit characteristics.

Infineon Technologies BSD223P Product Info

16 April 2026 0

Parameters

Budgetary Price €/1k

0.05

Ciss

45 pF

Coss

21 pF

ID (@25°C) max

0.39 A

IDpuls max

-1.56 A

Mode

Enhancement

Mounting

SMD

Operating Temperature range

-55 °C to 150 °C

Package

SOT-363

Pin Count

6 Pins

Polarity

P+P

Ptot max

0.25 W

QG

-0.5 nC

RDS (on) (@2.5V) max

2100 mΩ

RDS (on) (@4.5V) max

1200 mΩ

RDS (on) (@4.5V LL) max

1200 mΩ

Rth

500 K/W

Special Features

Dual

VDS max

-20 V

VGS(th) min

-0.6 V

VGS(th)

-0.9 V

VGS(th) max

-1.2 V

Features

  • Enhancement mode
  • Super logic level
  • Avalanche rated
  • Fast switching
  • dv/dt rated
Pb-free lead-plating
  • RoHS compliant, Halogen-free
  • Quflified according to AEC Q101

    • Description

    • Low RDS(on) for high efficency
    • Small packages save PCB space
    • Best-in-class quality and reliability
